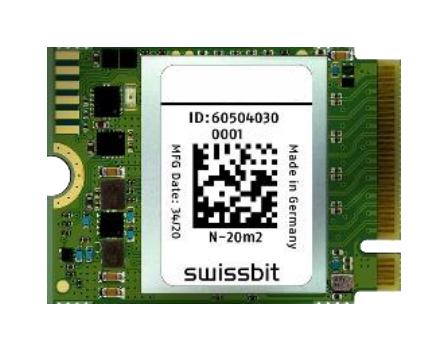

SWISSBIT SFPC015GM1EC1TOI5EA16STD NVMe M.2 SSD

The Swissbit N-20m2 SSD is an industrial-grade M.2 NVMe storage device supporting PCIe Gen3 x2/x4 interfaces and capacities from 15GB to 480GB. It features robust data protection, including AES256 encryption and end-to-end data integrity, along with advanced firmware support such as active wear leveling, passive media scan, and in-field firmware updates. Designed for high performance and reliability, it operates typically within -40°C to 85°C, making it suitable for harsh environments. Its compact dimensions and compliance with industry standards ensure seamless integration into embedded and enterprise systems.

Swissbit Series N-20m2 SSD: NVMe M.2 PCIe SSD 480GB
View SFPC015GM1EC1TOI5EA16STDDatasheet [pdf]
Authorized Distributors
Source:Mouser Electronics
Part No:SFPC015GM1EC1TO-I-5E-A16-STD
Stock:0
Inv Date:06-16-2026
Price: N/A
Buy/RFQ:

SWISSBIT SFPC015GM1EC1TOI5EA16STD NVMe M.2 SSD Specifications:

  • Form Factor: M.2 2230/2242/2280 (30/42/80 mm x 22 mm x 2.63 mm)
  • Capacities: 15 GBytes, 30 GBytes, 60 GBytes, 120 GBytes, 240 GBytes, 480 GBytes
  • Interface: PCIe 3.1, Gen3 x2/x4, supports NVMe 1.3
  • Sequential Read: Up to 1,773 MB/s; Random Read 4K: Up to 140,000 IOPS
  • Sequential Write: Up to 827 MB/s; Random Write 4K: Up to 131,000 IOPS
  • Power: 3.3V, 1.8V, 0.9V; Standard operating temperature: -40°C to 85°C, commercial: 0°C to 70°C
  • Endurance: Up to 190 TBW (240GB), MTBF > 2,000,000 hours
  • Physical Dimensions: Length varies 30/42/80 mm, width 22 mm, max thickness 2.63 mm
  • Data Retention: 10 years at 40°C, complies with JEDEC standards
  • Mechanical Reliability: Shock resistance to 1500 g, vibration up to 50 g

Buy the Swissbit Series N-20m2 SSD: NVMe M.2 PCIe SSD 480GB

Purchase the Swissbit N-20m2 SSD online today and benefit from high-performance NVMe PCIe technology, extensive temperature range, and advanced data protection features. Ideal for embedded systems, industrial environments, and enterprise storage solutions, this compact M.2 drive offers robust endurance, low power consumption, and reliable operation in harsh conditions. Secure your data and enhance system performance by ordering this versatile SSD now, backed by Swissbit’s proven quality and support.

Buy Swissbit N-20m2 SSD 480GB now and experience unmatched reliability and high-speed data transfer for demanding industrial applications.

Frequently Asked Questions

Where can I buy SWISSBIT SFPC015GM1EC1TOI5EA16STD?

You can click on the BUY or RFQ button to purchase SFPC015GM1EC1TOI5EA16STD from an authorized SWISSBIT distributor.

How do I troubleshoot issues or seek technical support for part SFPC015GM1EC1TOI5EA16STD?

You can download the SFPC015GM1EC1TOI5EA16STD datasheet or visit the SWISSBIT website for support.
