SWISSBIT SFPC020GM1EC2TOI5EA1PSTD Industrial M.2 PCIe SSD

The Swissbit N-26m2 Series industrial M.2 PCIe SSD offers capacities from 5 GBytes to 160 GBytes, supporting NVMe 1.3 protocol and PCI Express 3.1 standard. It features high sequential read/write speeds up to 1,773/827 MB/s, robust endurance with over 1,550 TBW at 80GB, and operates reliably in temperatures from -40°C to 85°C. Designed with advanced 3D TLC NAND, ECC correction up to 120 bits, and end-to-end data protection, this SSD is suitable for demanding embedded applications requiring high performance, durability, and data integrity.

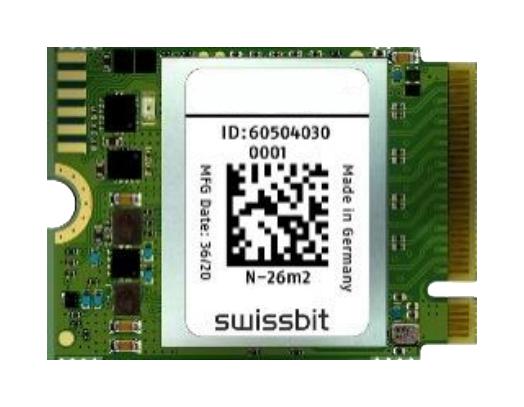

Swissbit Series 1606B SSD: SFPC020GM1EC2TO
View SFPC020GM1EC2TOI5EA1PSTDDatasheet [pdf]
Authorized Distributors
Source:Mouser Electronics
Part No:SFPC020GM1EC2TO-I-5E-A1P-STD
Stock:17
Inv Date:06-16-2026
Price: Unit price: $398.48
Buy/RFQ:

SWISSBIT SFPC020GM1EC2TOI5EA1PSTD Industrial M.2 PCIe SSD Specifications:

  • Form Factor: M.2 (2230/2242/2280)
  • Capacities: 5 GBytes, 10 GBytes, 20 GBytes, 40 GBytes, 80 GBytes, 160 GBytes
  • Interface: PCI Express 3.1, Gen3 x2, 4 Lanes
  • Support: NVMe 1.3 protocol
  • Sequential Read Speed: up to 1,773 MB/s
  • Sequential Write Speed: up to 827 MB/s
  • Random Read IOPS: up to 140,000
  • Random Write IOPS: up to 131,000
  • Endurance: over 1550 TBW at 80GB capacity
  • Operating Temperature: -40°C to 85°C
  • Storage Temperature: -40°C to 85°C
  • Voltage: 3.3V, 1.8V, and 0.9V
  • Support Power States: P0, P1, P2, P3, P$
  • Reliability: MTBF > 2,000,000 hours
  • Data Retention: 10 years at 40°C
  • Physical Dimensions: 30/42/80 mm x 22 mm x 2.63 mm
  • Compliance: PCIe 3.1, NVMe 1.3, RoHS, WEEE, REAch

Buy the Swissbit Series 1606B SSD: SFPC020GM1EC2TO

Experience high-speed, reliable data transfer with the Swissbit M.2 PCIe SSD supporting NVMe 1.3 and PCIe 3.1. With capacities up to 160GB, it offers sequential read speeds up to 1,773 MB/s, robust endurance exceeding 1550 TBW, and operates reliably from -40°C to 85°C. Designed for industrial and embedded applications, this SSD features AES encryption, end-to-end data protection, and advanced error correction. Its compact form factor and support for multiple power states ensure optimal performance and durability, making it the ideal storage solution for demanding environments. Order online today to enhance your system's data integrity and speed with Swissbit's trusted SSDs.

Order your Swissbit Series 1606B SFPC020GM1EC2TO SSD today and give your embedded projects the dependable, high-speed storage performance they deserve.

Frequently Asked Questions

Where can I buy SWISSBIT SFPC020GM1EC2TOI5EA1PSTD?

You can click on the BUY or RFQ button to purchase SFPC020GM1EC2TOI5EA1PSTD from an authorized SWISSBIT distributor.

How do I troubleshoot issues or seek technical support for part SFPC020GM1EC2TOI5EA1PSTD?

You can download the SFPC020GM1EC2TOI5EA1PSTD datasheet or visit the SWISSBIT website for support.

Who is the manufacturer of SFPC020GM1EC2TOI5EA1PSTD?

SWISSBIT
