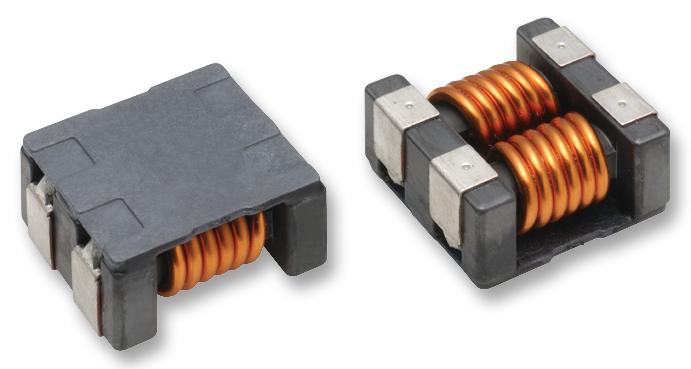

TDK Corporation ACM12111022PLTL01 Power Line Noise Filter
The ACM1211 Series common mode filter is designed for power line noise suppression in electronic devices such as laptops, word processors, and other portable equipment. It features a compact, low-height design for space-saving integration, offering excellent impedance and noise reduction capabilities for high-current applications. Suitable for use in various electronic environments, it ensures stable operation and reduces electromagnetic interference, supporting reliable and compliant electronic devices. Its robust construction and optimal electrical characteristics make it ideal for power line filtering in modern, high-density electronic circuits.
TDK Corporation ACM12111022PLTL01 Power Line Noise Filter Specifications:
- Series name: ACM1211
- Dimensions: 12.0x11.0x6.0 mm
- Operating temperature: -40°C to +85°C
- Storage temperature: -40°C to +85°C
- Reel diameter: 330 mm
- Package quantity: 500 pieces/reel
- Weight: 2.3 g per piece
- Common mode impedance at 100MHz: 500Ω to 750Ω
- DC resistance: 6 to 14Ω
- Rated current: 6A to 10A
- Rated voltage: 80V
- ROHS compliant: Yes
- Halogen-free: Yes
- Reflow process: Preheating at 150°C, peak 230°C, soldering time 10-30 seconds, natural cooling
- Dimensions in mm: 12.0±0.2 x 11.0±0.2 x 6.0±0.2
- Packaging style: Reel, tape dimensions provided
Buy the TDK Series ACM1211 Common Mode Filter: ACM12111022PLTL01
Enhance your electronic equipment with the TDK ACM1211 series common mode filter, engineered for efficient power line noise suppression. Its compact design fits seamlessly into portable devices like laptops and word processors, providing stable operation and electromagnetic interference reduction. With reliable electrical characteristics and RoHS compliance, this filter ensures safe and compliant performance. Ideal for high-current applications requiring space-saving solutions, it helps extend device lifespan and improves operational stability. Purchase TDK ACM1211 series online for quick, secure delivery.
Get TDK ACM12111022PLTL01 power line noise filter today—built for precise noise suppression and durable performance in electronic devices.
Frequently Asked Questions
Where can I buy TDK Corporation ACM12111022PLTL01?
You can click on the BUY or RFQ button to purchase ACM12111022PLTL01 from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part ACM12111022PLTL01?
You can download the ACM12111022PLTL01 datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of ACM12111022PLTL01?
TDK Corporation
