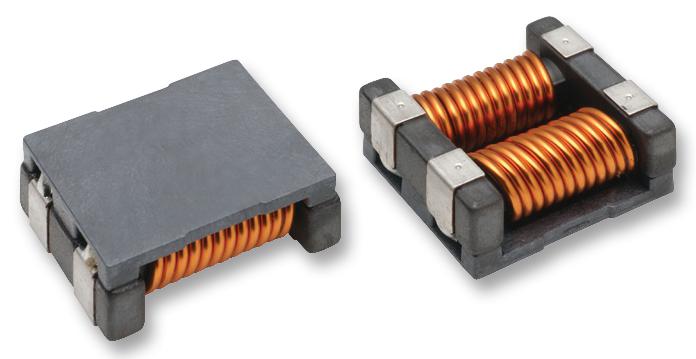

TDK Corporation ACM15135512PLTLHF Common Mode Filter
The ACM series Common Mode Filter is designed to reduce noise and improve electromagnetic compatibility in various applications. It offers excellent common mode impedance and noise suppression in a compact, low-profile surface-mount package. Suitable for adapter lines, battery lines, and high-current power lines, this filter is ideal for industrial and power management applications. The product is halogen-free, making it environmentally friendly and suitable for high-density portable devices.
TDK Corporation ACM15135512PLTLHF Common Mode Filter Specifications:
- Common mode impedance: 450 to 900 ohms (varies by model)
- DC resistance: 0.05 to 0.08 ohms
- Rated voltage: 180 to 1000 V
- Operating temperature: -40°C to +85°C
- Package quantity: 500 to 2500 pieces/reel
- Individual weight: 0.15 to 3.15 grams
- Reel diameter: 330 mm
- Halogen-free and RoHS compliant
- Designed for high-current applications up to 10 A
- Compatible with lead-free soldering processes
- Suitable for industrial, power supply, and electronic equipment
- Reflow profile: preheat at 150°C, peak at 245°C
- No polarity for ease of mounting
- Dimensions vary by model, typical sizes between 12–15 mm
Buy the TDK Series ACM: Common Mode Filter ACM15135512PLTLHF
Enhance your electronic device performance with the TDK Series ACM15135512PLTLHF common mode filter. Engineered for excellent noise suppression and electromagnetic compatibility, this halogen-free component is perfect for power lines, adapters, and high-current applications. Its compact size and RoHS compliance ensure easy integration into high-density portable devices and industrial equipment. Order online now to ensure your power management systems are protected and operate smoothly with TDK’s trusted quality, providing reliable electromagnetic compatibility in your critical applications.
Order your TDK Series ACM15135512PLTLHF common mode filter today and enhance noise suppression in your high-current electronic applications with reliable, environmentally friendly performance.
Frequently Asked Questions
Where can I buy TDK Corporation ACM15135512PLTLHF?
You can click on the BUY or RFQ button to purchase ACM15135512PLTLHF from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part ACM15135512PLTLHF?
You can download the ACM15135512PLTLHF datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of ACM15135512PLTLHF?
TDK Corporation
