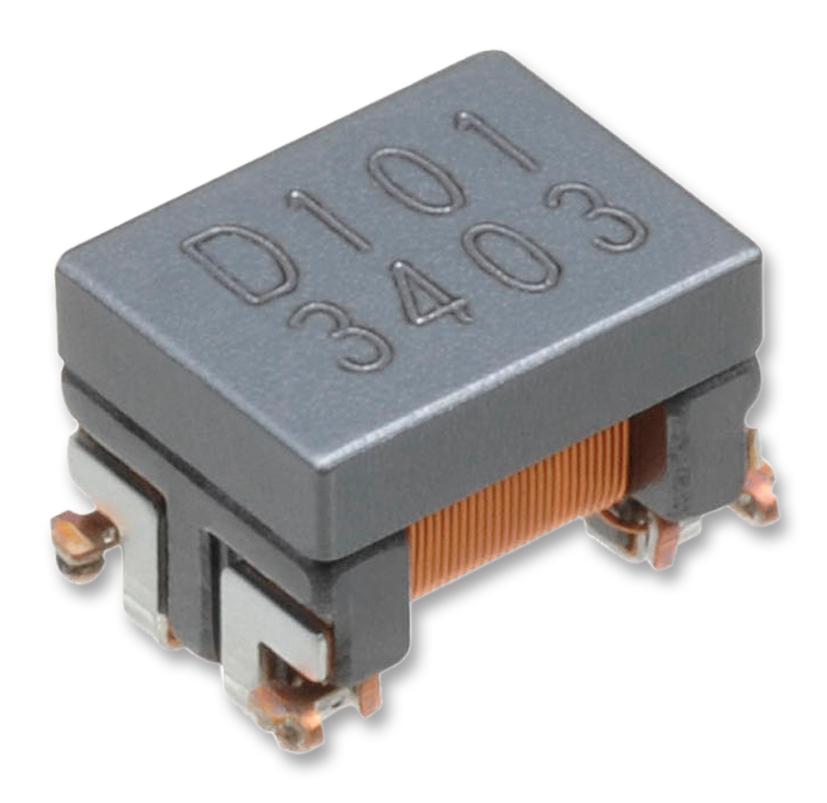

TDK Corporation ACT12102202PTL00 Automotive Signal Filter
The ACT1210 series are compact common mode filters designed for automotive signal lines, including CAN-BUS and FlexRay systems, with an operating temperature range of -55°C to +150°C. These filters, compliant with AEC-Q200 standards, feature low impedance at 10 MHz, high impedance at 100 kHz, and high insulation resistance, ensuring reliable noise suppression in automotive environments. Their small size (3225) makes them suitable for vehicle safety and infotaiment applications, providing excellent electromagnetic compatibility and durability under harsh conditions.
TDK Corporation ACT12102202PTL00 Automotive Signal Filter Specifications:
- Series: ACT1210
- Size: 3225
- Operating Temperature Range: -55°C to +150°C
- Impedeance at 10MHz (Q min): 300-7000Ω
- Common Mode Inductance at 100kHz: 0.4-100μH
- Stray Inductance at 100kHz: 0.05-0.13μH
- Rated Current: up to 300mA (at 125°C)
- Isolation Resistance: 80 MΩ
- Mechanical Dimensions: 3.9mm max height, 2.0±0.5mm width
- Packaging: 6,000 pcs per reel
- Material: SMD module suitable for reflow soldering with peak temperature 245°C
- Compliance: AEC-Q200
- Application: Automotive signal line filtering for CAN-BUS, FlexRay, xEV, and infotainment systems
Buy the EMC Components &TDK ACT1210 – Reliable Automotive Signal Filter for Industrial Applications
Order the EMC Components &TDK ACT1210 automotive signal filters today and ensure reliable noise filtering for critical automotive communication lines. Designed for CAN-BUS, FlexRay, and infotainment systems, these compact filters operate between -55°C to +150°C and meet strict AEC-Q200 standards. Suitable for high-temperature environments, their small size allows easy placement in tight spaces. With a reel packaging of 6,000 units and a proven durability, they are ideal for automotive manufacturers and electronics engineers seeking dependable performance for safety and control systems. Secure your supply now for seamless integration.
Buy EMC Components &TDK ACT1210 automotive signal filters now and experience unmatched noise suppression, durability, and optimal performance in your automotive projects.
Frequently Asked Questions
Where can I buy TDK Corporation ACT12102202PTL00?
You can click on the BUY or RFQ button to purchase ACT12102202PTL00 from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part ACT12102202PTL00?
You can download the ACT12102202PTL00 datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of ACT12102202PTL00?
TDK Corporation
