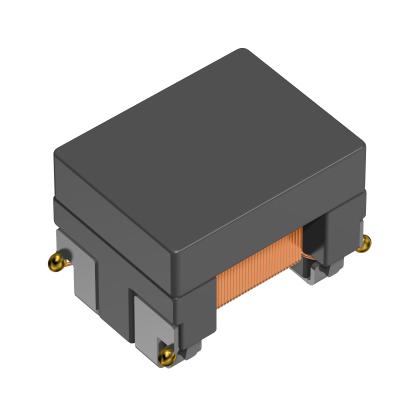

TDK Corporation ACT1210L1012PTL00 Common Mode Filter
The ACT1210L-101 type is a common mode filter designed for automotive signal lines, including A2B and Car camera bus systems. It operates within a temperature range of -40 to +125°C, is compliant with AEC-Q200 standards, and is suitable for high-characterization mode conversion. Features include high impedance, low DC resistance, and insulation resistance suited for automotive safety and powertrain applications. It provides effective noise suppression, with dimensions in mm, and is packaged in reels of 6,000 units for easy integration into manufacturing processes.
TDK Corporation ACT1210L1012PTL00 Common Mode Filter Specifications:
- Common mode inductance: 100 ±50/-30% uH
- DC resistance: 15 mΩ max.
- Insulation resistance: 150 MΩ min.
- Rated current: 80 mA
- Rated voltage: 150 Vmax.
- Operating temperature range: -40°C to +125°C
- Dimensions: Length 3.9 mm max., width 2.52 mm, height 2.20 mm
- Package: Reel of 6,000 units, tape width 17.52 mm, reel diameter 20.05 mm
- Material: High-temperature resistant, suitable for automotive environments
- Compliance: AEC-Q200 certified
Buy the EMC Components Series ACT Series Common Mode Filter: ACT1210L-101
Secure your automotive signal line performance with our high-quality common mode filter. Operating efficiently from -40°C to +125°C, it ensures noise suppression and reliable operation in safety-critical powertrain systems. Designed with low resistance and high insulation resistance, this filter is perfect for automotive applications. It comes in reels of 6,000 units for easy inventory management. Invest in proven automotive EMC solutions to enhance your system’s durability, compliance, and performance today—order online effortlessly with fast delivery.
Get EMC Components ACT1210L-101 today—built for automotive signal integrity and long-lasting durability.
Frequently Asked Questions
Where can I buy TDK Corporation ACT1210L1012PTL00?
You can click on the BUY or RFQ button to purchase ACT1210L1012PTL00 from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part ACT1210L1012PTL00?
You can download the ACT1210L1012PTL00 datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of ACT1210L1012PTL00?
TDK Corporation
