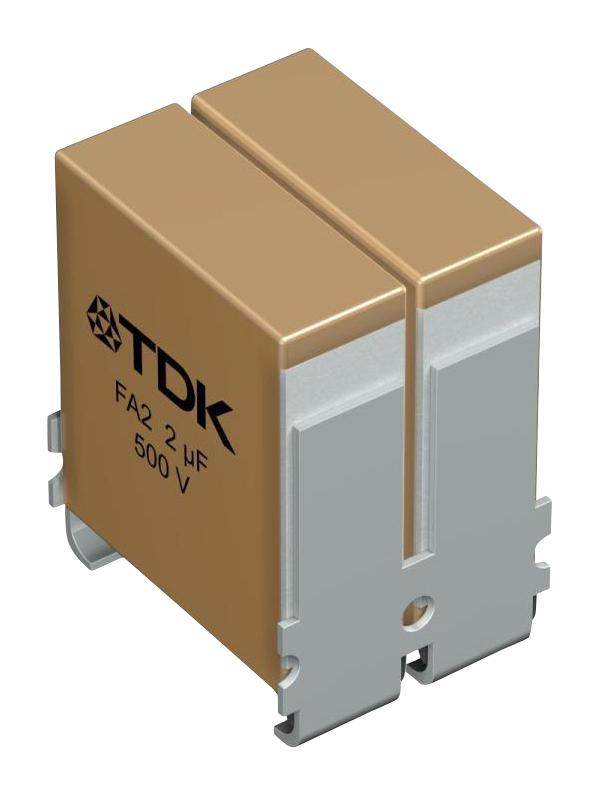

TDK Corporation B58035U5205M062 Ceramic Power Capacitor
The CeraLink B58035U series is a high-performance capacitor designed for fast-switching semiconductors in power converters and inverters. It features high ripple current capability, excellent temperature robustness, low ESL and ESR, and high capacitance density optimized for high frequencies up to several MHz. Constructed with RoHS-compliant lead lanthanum zirconium titanate ceramic, copper inner electrodes, and silver outer electrodes, these capacitors endure reflow soldering and have qualified reliability per AEC-Q200 rev. D standards, making them suitable for demanding high-temperature industrial applications requiring compact, reliable snubber and DC link capacitance.
TDK Corporation B58035U5205M062 Ceramic Power Capacitor Specifications:
- Series/Type: Flex Assembly FA series
- Capacitance Range: up to 6.0 μF (varies by type)
- Rated Voltage: 400 V, 600 V, 800 V, 900 V, 1000 V, 1300 V
- Operating Temperature: -40°C to +150°C
- Dissipation Factor tan δ: < 0.02
- Insulation Resistance Rins, typ: > 0.1 GΩ
- Construction: RoHS-compatible PLZT ceramic, copper inner electrodes, silver outer electrodes
- Compliance: Qualified according to AEC-Q200 rev. D
- Application: Power converters, inverters, snubber circuits
- Soldering: Suitable for reflow soldering only
- Physical Dimensions: varies by type, see datasheet for specific measurements
Buy the TDK CeraLink Capacitor – Reliable Fast-Switching Power Capacitor for Industrial Applications
Order the TDK CeraLink ceramic power capacitor online today to enhance your power conversion systems. These advanced capacitors provide high ripple current, low ESR, and excellent temperature resilience, making them ideal for high-frequency inverter and power converter applications. Designed with RoHS-compliant ceramic and robust lead frames, they ensure long-term reliability in demanding environments. Purchase now to benefit from fast delivery, professional customer support, and the proven quality of TDK electronics, ensuring your industrial projects operate with maximum efficiency and stability.
Buy TDK CeraLink B58035U capacitor now and experience unmatched reliability and high performance in power electronics with excellent thermal stability.
Frequently Asked Questions
Where can I buy TDK Corporation B58035U5205M062?
You can click on the BUY or RFQ button to purchase B58035U5205M062 from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part B58035U5205M062?
You can download the B58035U5205M062 datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of B58035U5205M062?
TDK Corporation
