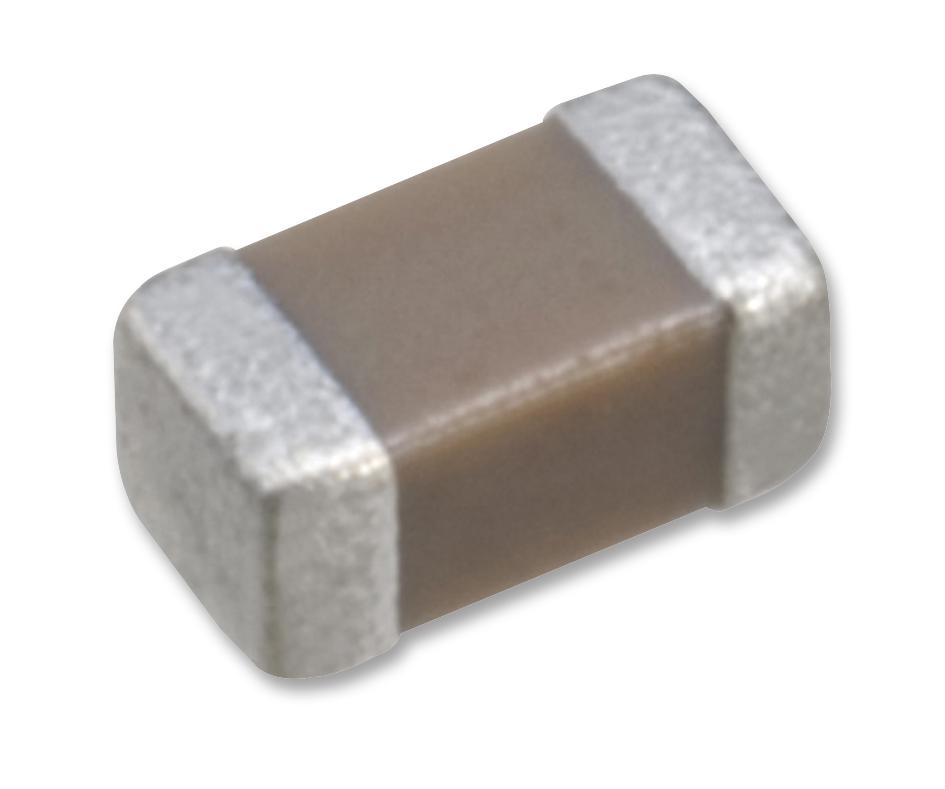

TDK Corporation CGA5H4X7R2J222K115AE High-Voltage Ceramic Capacitor
This automotive-grade multilayer ceramic capacitor offers reliable performance for electronic applications with high stability across temperature ranges from -55°C to +125°C. It features a capacitance of 2200 pF with a ±10% tolerance, rated for 630Vdc voltage. The capacitor has low ESR, excellent dissipation factor of 3%, and insulation resistance exceeding 10G ohms. Its compact size measures approximately 3.20mm in length with a width of 1.15mm, making it suitable for high-density automotive and industrial circuits requiring durable, high-voltage components with consistent capacitance and stability.
TDK Corporation CGA5H4X7R2J222K115AE High-Voltage Ceramic Capacitor Specifications:
- Capacitance: 2200 pF (±10%)
- Voltage Rating: 630 V dc
- Temperature Range: -55°C to +125°C
- Tolerance: ±10%
- Dissipation Factor: Max 3%
- Insulation Resistance: >10 GΩ
- Size: Approximate dimensions 3.20mm x 1.15mm
- Series: CGA5H4X7R2J222K
- Material: Multilayer ceramic
- Application: Automotive-grade electronics
- ESR: Low, suitable for high-frequency operation
- Reliability: Designed for long-term stability
- Compliance: RoHS compliant
Buy the Buy TDK CGA5H4X7R2J222K115AE Part Number CGA5H4X7R2J222K115AE Online
Experience reliable performance with the TDK CGA5H4X7R2J222K115AE high-voltage ceramic capacitor. Designed for automotive and industrial applications, this capacitor provides exceptional stability across -55°C to +125°C temperatures. It offers a capacitance of 2200 pF at 630Vdc, featuring low ESR, high insulation resistance, and a compact size suitable for dense circuit designs. Perfect for applications demanding high reliability, durability, and efficient high-frequency operation, ensuring your electronic systems perform safely and effectively in demanding environments.
Get TDK CGA5H4X7R2J222K115AE today—built for high voltage stability and automotive durability.
Frequently Asked Questions
Where can I buy TDK Corporation CGA5H4X7R2J222K115AE?
You can click on the BUY or RFQ button to purchase CGA5H4X7R2J222K115AE from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part CGA5H4X7R2J222K115AE?
You can download the CGA5H4X7R2J222K115AE datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of CGA5H4X7R2J222K115AE?
TDK Corporation
