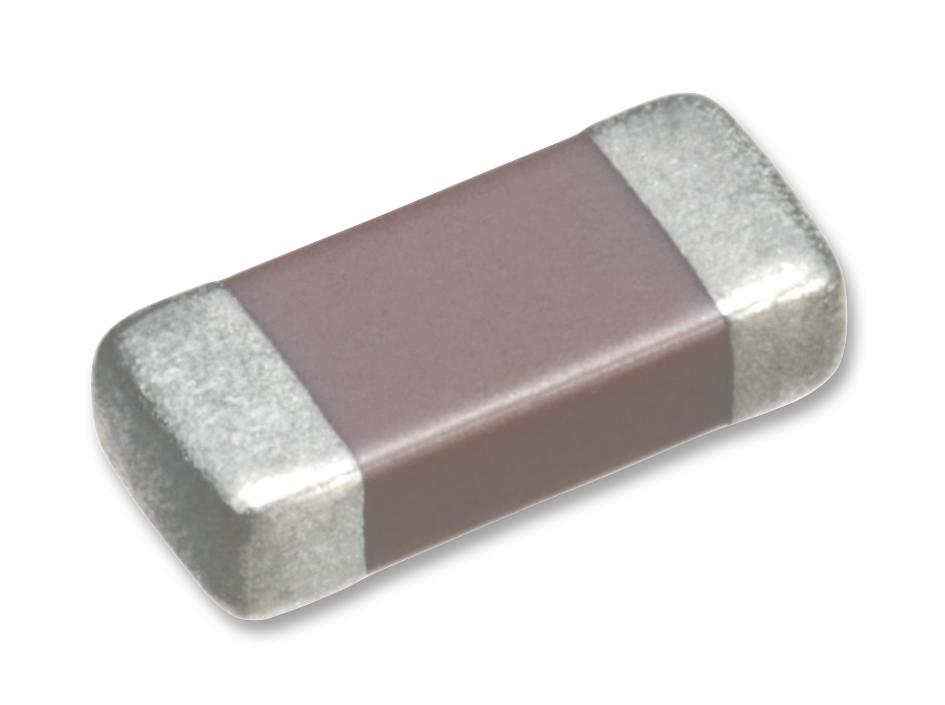

TDK Corporation C4520C0G3F470K160KA High Voltage Ceramic Capacitor
The high voltage multilayer ceramic chip capacitor offers exceptional performance in demanding applications such as inverter circuits, LAN cards, and high-voltage power supplies. Designed with advanced internal electrode structures and low dielectric-strength materials, it ensures high reliability and withstand voltage. Suitable for reflow soldering, it features various sizes, capacitance values, and rated voltages up to 3 kV. Its robust construction meets strict temperature and tolerance standards, making it an ideal choice for electronic circuits requiring high capacitance stability and durability in industrial, telecommunications, and networking environments.
TDK Corporation C4520C0G3F470K160KA High Voltage Ceramic Capacitor Specifications:
- Capacitance Range: 10 pF to 470 nF
- Capacitance Tolerance: ±10%
- Rated Voltage: 3 kV (3F), 2 kV (3D), 1 kV (3A)
- Dimensions: 4.2 mm x 4.0 mm x 1.6 mm (example for C4520)
- Body Length: 4.2 mm, Body Width: 4.0 mm, Body Height: 1.6 mm
- Temperature Characteristics: COG (0±30 ppm/°C), CH, JB, X7R
- Temperature Range: -55°C to +125°C
- Material: Multilayer ceramic, low dielectric breakdown
- Compliance: RoHS, high reliability in high-voltage applications
- Applications: Inverter circuits, LAN, transceivers, high-voltage power supplies
- Connector: Suitable for reflow soldering, with recommended flux types
- Terminals: Tinned copper, precise spacing for PCB mounting
- Certifications: RoHS compliant
- Use: High activity rosin flux with minimal chlorine (max 0.2%) recommended
Buy the Buy TDK High Voltage Ceramic Capacitor Part Number C4520C0G3F470K160KA Online
Purchase TDK high voltage ceramic capacitors online today for crucial high-voltage applications, including inverters and LAN networks. Designed with advanced internal structures and low dielectric materials, these capacitors provide excellent withstand voltage, stability, and reliability under demanding conditions. They are suitable for reflow soldering and meet rigorous temperature and tolerance standards, making them ideal for industrial electronics, telecommunications, and power supply systems. Secure high-performance capacitors from TDK through our easy online ordering process for fast delivery and dependable quality.
Order your TDK SeriesC4520C0G3F470K160KA high voltage ceramic capacitor today and ensure reliable high-voltage performance in your electronic circuits.
Frequently Asked Questions
Where can I buy TDK Corporation C4520C0G3F470K160KA?
You can click on the BUY or RFQ button to purchase C4520C0G3F470K160KA from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part C4520C0G3F470K160KA?
You can download the C4520C0G3F470K160KA datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of C4520C0G3F470K160KA?
TDK Corporation
