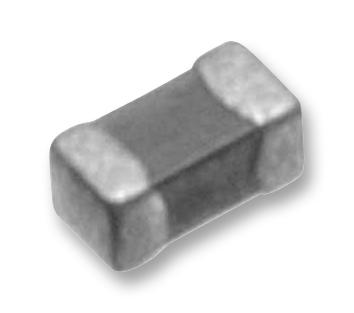

TDK Corporation CGA2B2C0G1H100D050BA Multilayer Ceramic Capacitor
The product is a high-quality multilayer ceramic chip capacitor designed for automotive mid-voltage applications, with ratings up to 630V. It features excellent DC bias properties, low residual inductance for superior frequency characteristics, and precision technologies that enable the use of multiple thinner dielectric layers for high capacitance. Suitable for decoupling, smoothing, and snubber circuits in inverters or DC-DC converters of electric and hybrid vehicles, it adheres to AEC-Q200 standards, ensuring durability and reliability in demanding environments.
TDK Corporation CGA2B2C0G1H100D050BA Multilayer Ceramic Capacitor Specifications:
- Type: CGA2 [EIA CC0402]
- Voltage rating: 100V to 630V
- Capacitance range: up to 15pF
- Temperature Characteristics: COG (-55°C to +125°C, 0 + 30 ppm/°C)
- Dimensions: Length 1.00 mm, Width 0.05 mm, Height 0.10 mm (Series 2)
- Body Length: 1.00 mm
- Body Width: 0.05 mm
- Body Height: 0.10 mm
- Terminal Width: 0.10 mm
- Terminal Spacing: 0.20 mm
- Construction: Multilayer ceramic, high precision dielectric layers
- Temperature Stability: COG, X7R, X7S, X7T variants available
- Compliance: AEC-Q200
- Application: Decoupling, smoothing, noise suppression in automotive electronics
- Installation: Surface Mount Technology (SMT)
- Features: Low residual inductance, high frequency performance, excellent DC bias characteristics.
Buy the Buy TDK Multilayer Ceramic Capacitor Part Number CGA2B2C0G1H100D050BA Online
Purchase your TDK high-performance multilayer ceramic capacitor online today. Designed for automotive mid-voltage applications, it provides excellent frequency response, low residual inductance, and high reliability. Ideal for decoupling, smoothing, and noise suppression in electric vehicle power modules, this surface-mount component meets all industry standards including AEC-Q200. With a compact size and wide voltage ratings, it ensures optimal performance and durability in demanding automotive environments. Get your reliable ceramic capacitor now and enhance your circuit's stability and efficiency.
Order your TDK Series2 100V-630V Ceramic Capacitor today and ensure your automotive circuits operate with reliable high-frequency stability.
Frequently Asked Questions
Where can I buy TDK Corporation CGA2B2C0G1H100D050BA?
You can click on the BUY or RFQ button to purchase CGA2B2C0G1H100D050BA from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part CGA2B2C0G1H100D050BA?
You can download the CGA2B2C0G1H100D050BA datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of CGA2B2C0G1H100D050BA?
TDK Corporation
