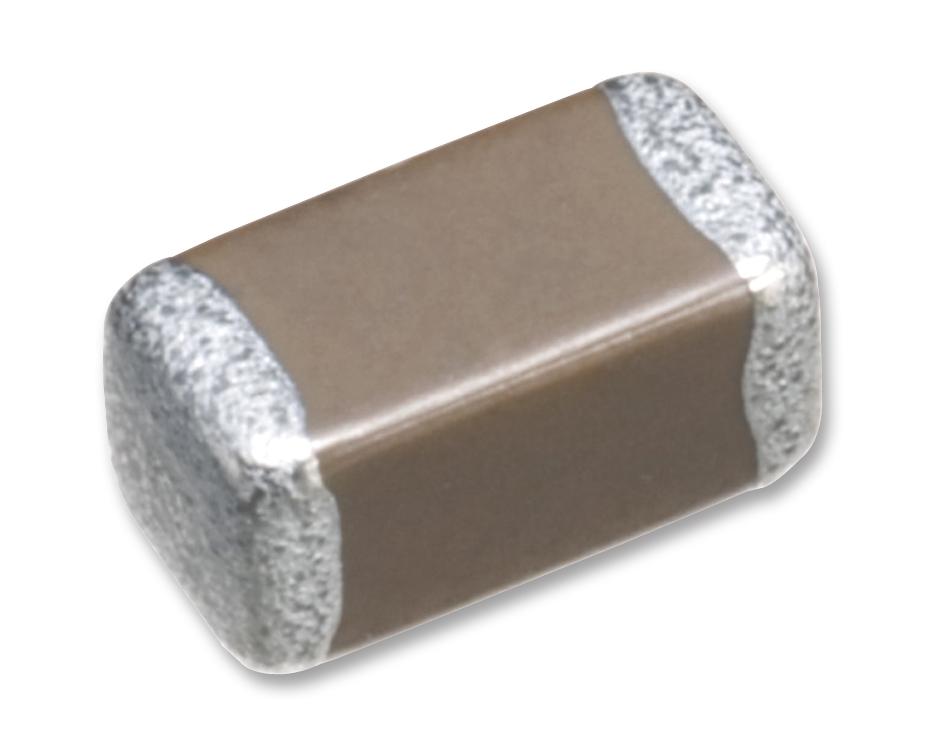

TDK Corporation CGA3E2X5R1E224K080AA Automotive Ceramic Capacitor
These high-reliability multilayer ceramic chip capacitors are designed for automotive applications, offering stable performance across various temperatures. With Class 1 (Temperature Compensating) and Class 2 (Temperature Stable) options, they feature a monolithic structure for superior mechanical strength and high reliability. Suitable for engine control units, sensor modules, and power supply circuits, they provide low ESR, excellent frequency characteristics, and low self-heating. Available in multiple capacitance values, sizes, and voltage ratings, these capacitors meet the stringent demands of automotive environments, including compliance with industry standards.
TDK Corporation CGA3E2X5R1E224K080AA Automotive Ceramic Capacitor Specifications:
- Size: 0805 (2.0 x 1.25 mm), 1206 (3.2 x 1.6 mm), 1210 (3.2 x 2.5 mm), 2220 (5.7 x 5.0 mm), 1812 (4.5 x 3.2 mm), 0603 (1.6 x 0.8 mm), 0603 (1.6 x 0.8 mm), 0603 (1.6 x 0.8 mm)
- Capacitance: Ranges from 0.25 pF to 47 µF, various tolerances (+/-10%, +/-20%)
- Rated Voltage: 6.3V, 10V, 16V, 25V, 35V, 50V depending on series
- Temperature Range: -55°C to +125°C for Class 1 (COG), -55°C to +85°C for Class 2 (X7R, X7S)
- Temperature Coefficient: COG (-55 to +125°C, 0 + 30 ppm/°C), X7R (+15%), X7S (+22%)
- Construction: Monolithic ceramic dielectric layers, low ESR, high ripple resistance
- Compliance: Industry standard, automotive OEM and sensor modules suitable
- Physical Durability: Mechanical strength per automotive standards, low self-heating
- Environmental: RoHS compliant, robust under thermal and vibration stresses
Buy the TDK CGA3E2X5R1E224K080AA – Reliable Automotive Ceramic Capacitors for Industrial Applications
Enhance your electronic manufacturing with the reliable automotive ceramic capacitors from TDK. Designed for power supplies, sensors, and control systems, these capacitors deliver high stability, low ESR, and excellent performance across temperature variations. Suitable for demanding automotive environments, they comply with industry standards and ensure long-term durability. Order online today and secure trustworthy, high-quality ceramics essential for modern automotive and industrial electronics. Our quick delivery ensures your projects stay on schedule, with dependable parts from a trusted supplier.
Order your TDK series CGA3E2X5R1E224K080AA today and give your automotive and industrial projects the dependable ceramic capacitance they deserve.
Frequently Asked Questions
Where can I buy TDK Corporation CGA3E2X5R1E224K080AA?
You can click on the BUY or RFQ button to purchase CGA3E2X5R1E224K080AA from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part CGA3E2X5R1E224K080AA?
You can download the CGA3E2X5R1E224K080AA datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of CGA3E2X5R1E224K080AA?
TDK Corporation
