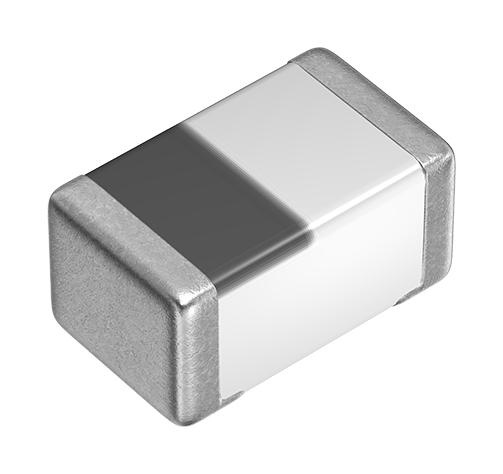

TDK Corporation MHQ1005P2N2BT000 High-Frequency RF Inductor
The high-frequency multilayer ceramic inductor series offers excellent Q characteristics comparable to air core inductors, operating from -55°C to +125°C. Designed for mobile communication devices like smartphones, tablets, and RF modules, these compact inductors feature fine inductance increments for precise tuning. Their multilayer construction provides stable performance at GHz frequencies, making them ideal for RF applications including PAs, VCOs, and tuners. The series includes a wide inductance range, ensuring versatility for high-frequency circuit design with low DC resistance and high self-resonant frequencies.
TDK Corporation MHQ1005P2N2BT000 High-Frequency RF Inductor Specifications:
- Series: MHQ-P
- Type: ARBs
- Dimensions: 1.0x0.6x0.5 mm
- Operating Temperature Range: -55°C to +125°C
- Inductance Range: 07nH to 518nH
- Tolerance: +0.1nH to +2%
- Self-Resonant Frequency: 250 MHz to 2.5 GHz
- Q Factor: 50 to 180
- DC Resistance: 0.06 to 0.21Ω
- Rated Current: 70mA to 500mA
- Material: Multilayer ceramic
- Packaging: Tape and reel, up to 10,000 pcs
- Application: Mobile RF modules, PAs, VCOs, WLAN, Bluetooth, UWB, tuners
- Measurement Equipment: Keysight Technologies La 4291B, Self-resonant freq 8720C, DC resistance Type 7561 Yokogawa
- Storage Temperature: -55°C to +125°C
- Storage Humidity: 10-75% RH
Buy the Electronics Series RF Ceramic Inductor: MHQ1005P2N2BT000
Order the MHQ1005P2N2BT000 high-frequency multilayer ceramic inductor now online for your RF communications, mobile devices, and high-frequency circuit needs. Designed for stable operation up to GHz frequencies, this compact and reliable component features wide inductance options, high Q, low resistance, and durable construction suitable for PAs, VCOs, WLAN, Bluetooth, and tuners. Benefit from fast shipping, authentic quality, and technical support—enhance your RF designs with this proven, premium ceramic inductor today.
Get MHQ1005P2N2BT000 high-frequency ceramic inductor today—built for precision, reliability, and high GHz performance in RF circuits.
Frequently Asked Questions
Where can I buy TDK Corporation MHQ1005P2N2BT000?
You can click on the BUY or RFQ button to purchase MHQ1005P2N2BT000 from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part MHQ1005P2N2BT000?
You can download the MHQ1005P2N2BT000 datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of MHQ1005P2N2BT000?
TDK Corporation
