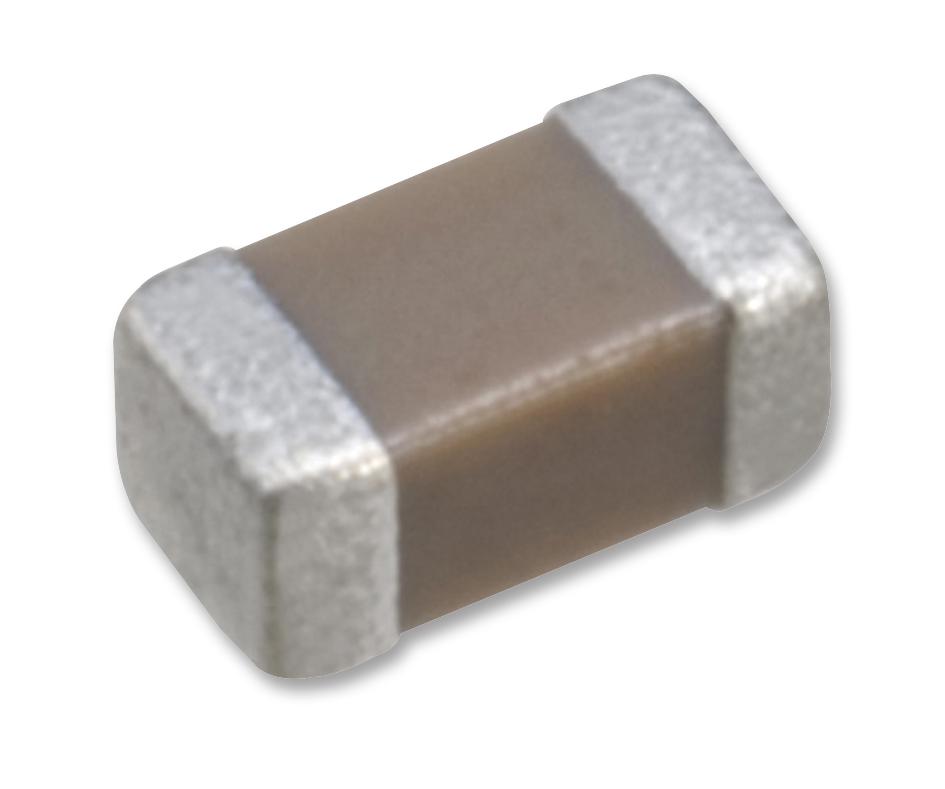

TDK Corporation CGA3E2X7R1H223K080AE Automotive Ceramic Capacitor
The CGA3E2X7R1H223K080AE is an automotive-grade ceramic capacitor designed for soft termination applications. It features high capacitance stability across temperature and voltage ranges, with a rated voltage of 50VDC. This capacitor offers excellent DC bias characteristics, low ESR, and reliable performance in automotive environments, making it suitable for power filtering and decoupling in automotive electronics. Its compact size allows for easy integration into various circuit layouts, ensuring durability under temperature variations from -55°C to 125°C and high ripple currents.
TDK Corporation CGA3E2X7R1H223K080AE Automotive Ceramic Capacitor Specifications:
- Capacitance: 0.022µF (22nF)
- Capacitance Tolerance: +/-10%
- Rated Voltage: 50VDC
- Temperature Range: -55°C to 125°C
- Temperature Characteristic: X7R (+/-15%)
- Size: 1.60mm L x 0.80mm W x 0.80mm T
- ESR: Low ESR performance across frequencies
- Dissipation Factor: Max. 3%
- Insulation Resistance: Min. 10 GΩ
- Frequency Range: Up to several MHz for stability
- Application: Automotive power filtering and decoupling
Buy the TDK Series CGA3E2X7R1H223K080AE: 0.022µF 50VDC Ceramic Capacitor
Enhance your automotive electronic circuits with this high-quality ceramic capacitor. The TDK Series CGA3E2X7R1H223K080AE provides reliable performance with 0.022µF capacitance, 50VDC rated voltage, and excellent temperature stability from -55°C to 125°C. Its compact size makes it ideal for space-constrained environments while delivering low ESR and high ripple current capacity. Perfect for power filtering, decoupling, and noise suppression in automotive control modules. Purchase online today to secure dependable, high-performance components for your automotive electronics needs.
Order your TDK Series CGA3E2X7R1H223K080AE ceramic capacitor today and ensure reliable power filtering for your automotive electronics projects.
Frequently Asked Questions
Where can I buy TDK Corporation CGA3E2X7R1H223K080AE?
You can click on the BUY or RFQ button to purchase CGA3E2X7R1H223K080AE from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part CGA3E2X7R1H223K080AE?
You can download the CGA3E2X7R1H223K080AE datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of CGA3E2X7R1H223K080AE?
TDK Corporation
