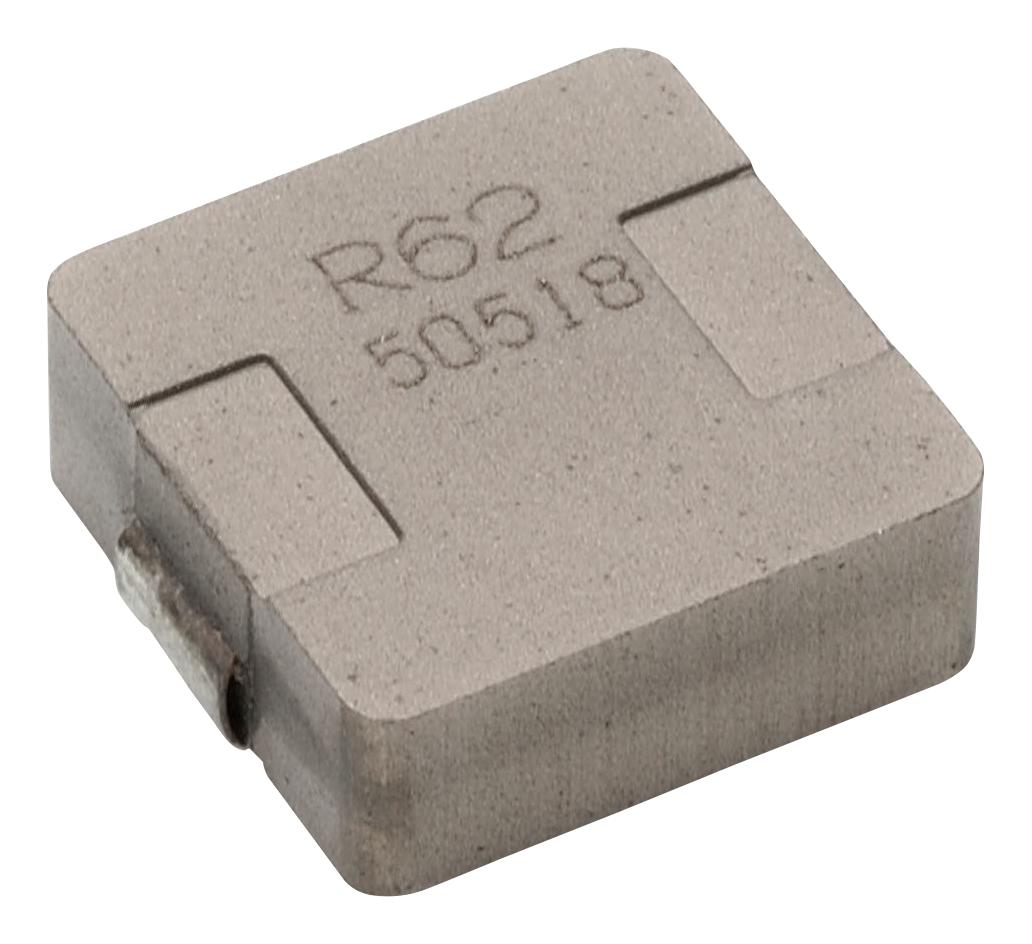

TDK Corporation SPM6530T100M Power Inductor
The SPM6530 series is a magnetic shield wound inductor designed for power circuits, featuring large current handling, low Rdc, and compact size. Made with metallic magnetic material and an integrated molded coil, it offers excellent high-temperature stability with minimal inductance variance and lower hum noise compared to ferrite types. Suitable for PCs, HDDs, servers, VRMs, and power modules, it operates reliably between -40°C and +125°C, ensuring consistent performance under thermal stress. Its rugged construction and stable inductance make it ideal for demanding electronic power applications.
TDK Corporation SPM6530T100M Power Inductor Specifications:
- Inductance: 0.25 μH to 68 μH with tolerance ±20%
- DC Resistance Range: 2.10 mΩ to 48.4 mΩ
- Rated Current (Isat): 2.10 A to 4.0 A
- Operating Temperature Range: -40°C to +125°C
- Dimensions: Length 22.4 mm, Width 16.4 mm, Height varies with model
- Material: Metallic magnetic material with integrated molded coil
- Shield Type: Magnetic shield for noise reduction
- Frequency Range: up to 100 kHz
- Packaging: Reel quantity 1000 pcs, suitable for automatic insertion
- Temperature Rise: Self heating up to 125°C
- Maximum Peak Current: 23.0 A to 4.0 A depending on inductance
- Certification: RoHS compliant
Buy the Innovative Power Inductor – Reliable Magnetic Shield Components for Industrial Applications
Enhance your electronic power systems with the SPM6530 series power inductor, designed for high current and thermal stability. Its magnetic shield reduces noise and interference, making it ideal for PCs, servers, and VRMs. Operating reliably from -40°C to +125°C, this compact inductor ensures stable inductance and low resistance, enhancing efficiency and durability. Easy to incorporate into various power modules, it comes in reel packaging for convenient automated placement. Trust in its quality and ensure optimal performance for your industrial power applications today.
Buy SPM6530 magnetic shield inductor now and experience unmatched reliability and performance in power circuits and high-temperature environments.
Frequently Asked Questions
Where can I buy TDK Corporation SPM6530T100M?
You can click on the BUY or RFQ button to purchase SPM6530T100M from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part SPM6530T100M?
You can download the SPM6530T100M datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of SPM6530T100M?
TDK Corporation
