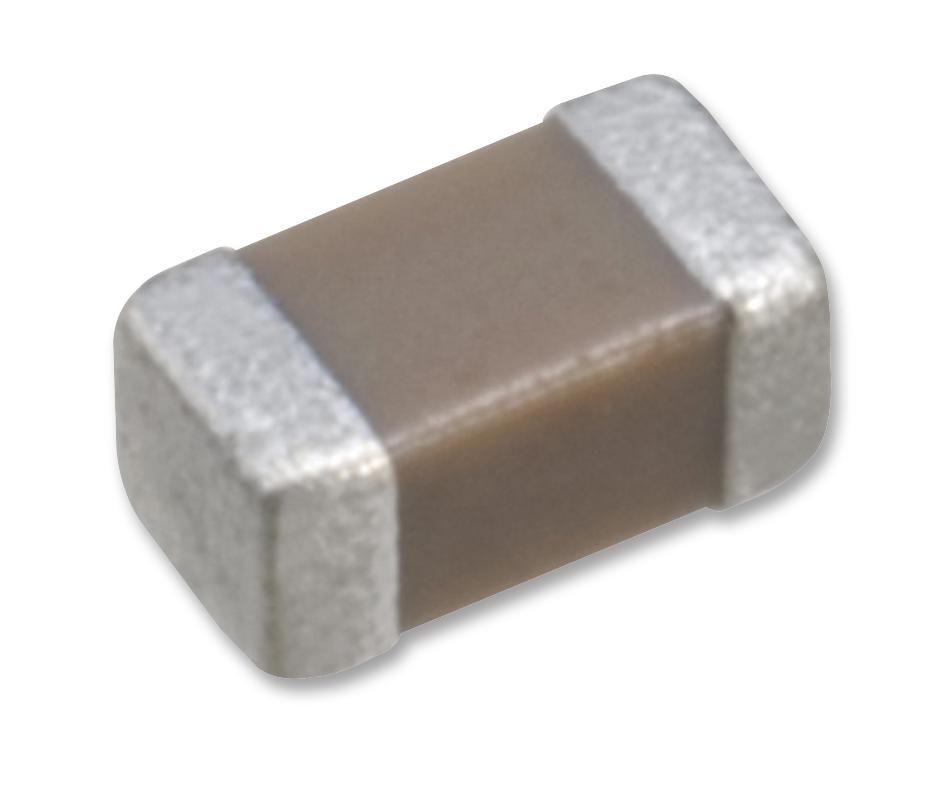

TDK Corporation CGA3E2X8R1H223K080AE Automotive Ceramic Capacitor
The CGA3E2X8R1H223K080AE is an automotive-grade ceramic capacitor designed for soft termination in various electronic applications. Featuring a capacitance of 2200pF, rated for 50V DC, it exhibits excellent temperature stability from -55°C to 150°C, with a capacitance tolerance of ±10%. Its size is 1.60mm x 0.80mm x 0.80mm, built to handle high-frequency and ripple conditions, making it suitable for automotive and general electronic use. It offers low dissipation factor, high insulation resistance, and robust construction for reliable performance in demanding environments.
TDK Corporation CGA3E2X8R1H223K080AE Automotive Ceramic Capacitor Specifications:
- Capacitance: 2200pF (0.0022μF)
- Rated Voltage: 50V DC
- Temperature Range: -55°C to 150°C
- Capacitance Tolerance: ±10%
- Dimensions: Length 1.60mm +0.2,-0.1mm, Width 0.80mm +0.15,-0.1mm, Height 0.80mm +0.15,-0.1mm
- Insulation Resistance: 10 GΩ min
- Dissipation Factor: 3% max
- ESR vs. Frequency: Low impedance at high frequencies
- Construction: Ceramic multilayer capacitor with automotive-grade reliability
- Temperature Coefficient: X8R (-55°C to 150°C, ±15%)
- Application: Soft termination for automotive and industrial electronics
Buy the Buy TDK CGA3E2X8R1H223K080AE Part Number CGA3E2X8R1H223K080AE Online
Purchase the TDK automotive ceramic capacitor CGA3E2X8R1H223K080AE online today. This high-quality device features 2200pF capacitance, 50V rated voltage, and operates reliably from -55°C to 150°C. Its compact size of 1.60x0.80mm makes it ideal for high-frequency and ripple applications in automotive electronics and industrial systems. Designed with low dissipation factor and high insulation resistance, it ensures durability and consistent performance under demanding conditions. Buy now for fast delivery and trust in premium quality.
Get TDK CGA3E2X8R1H223K080AE today—built for high temperature stability, reliable performance, and automotive-grade durability.
Frequently Asked Questions
Where can I buy TDK Corporation CGA3E2X8R1H223K080AE?
You can click on the BUY or RFQ button to purchase CGA3E2X8R1H223K080AE from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part CGA3E2X8R1H223K080AE?
You can download the CGA3E2X8R1H223K080AE datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of CGA3E2X8R1H223K080AE?
TDK Corporation
