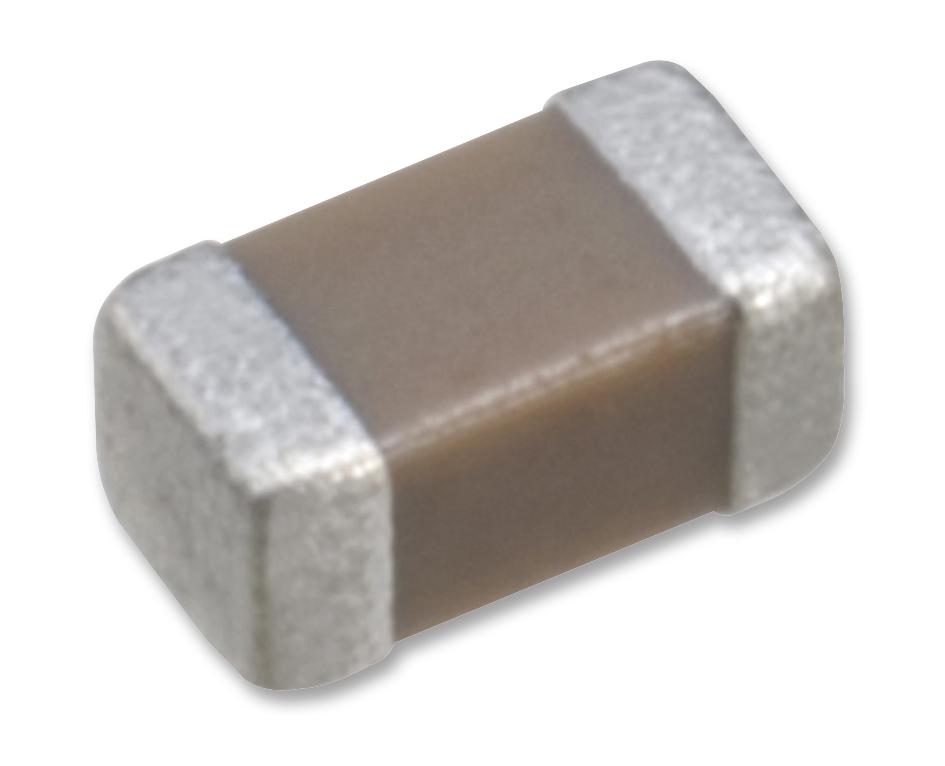

TDK Corporation CGA5L3X7S2A225M160AE Ceramic Capacitor
This is a high-reliability multilayer ceramic chip capacitor series suitable for automotive and aerospace applications. Featuring X7R and X7S temperature characteristics, these capacitors offer excellent stability from -55°C to +125°C, with rated voltages up to 630V. They exhibit low ESR, high volumetric efficiency, and are compliant with RoHS directives, making them ideal for switching power supplies, telecommunication base stations, and electronic circuits mounted on alumina substrates. The series includes various sizes and capacitance values, ensuring versatile usage in demanding environments.
TDK Corporation CGA5L3X7S2A225M160AE Ceramic Capacitor Specifications:
- Series Name: CGA5
- Type: Multilayer ceramic chip capacitor
- Temperature Characteristics: X7R, X7S, X7T, X8R, COG
- Rated Voltage: 630V (2J), 450V (2W), 250V (2E), 100V (2A), 35V (1V), 25V (1E), 16V (1C), 10V (1A)
- Capacitance Range: 6.3 pF to 220,000 pF (22 x 10^-12 F to 220 x 10^-9 F)
- Tolerance: ±10%, ±20%, ±5%, or ±25% depending on product code
- Size: Varieties including 0805, 1206, 1210, 1808, 2220, 3216, 4520, 5750, 4532, 3225
- Body Thickness: 0.50 mm, 0.80 mm, 1.25 mm, 1.50 mm, 2.20 mm, 2.50 mm
- Temperature Range: -55°C to +125°C for X7R/X7S, -55°C to +150°C for X8R, -55°C to +125°C for X7T, -55°C to +125°C for COG
- Compliance: RoHS directive, AEC-Q200
Buy the TDK Series CGA5 Ceramic Capacitors: CGA5L3X7S2A225M160AE
Purchase TDK ceramic capacitors from our online store today and enjoy high-quality, temperature-stable components designed for demanding automotive, telecom, and industrial applications. Featuring low ESR, high reliability, and compliance with RoHS standards, these capacitors ensure durability and optimal performance in critical circuits. With a variety of sizes, capacitance values, and voltage ratings up to 630V, they are suitable for switching power supplies, telecommunication base stations, and electronics mounted on alumina substrates. Simplify your procurement process and enhance your product design by ordering online now.
Order your TDK Series CGA5 ceramic capacitor today and ensure your electronic projects benefit from high stability and reliable performance.
Frequently Asked Questions
Where can I buy TDK Corporation CGA5L3X7S2A225M160AE?
You can click on the BUY or RFQ button to purchase CGA5L3X7S2A225M160AE from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part CGA5L3X7S2A225M160AE?
You can download the CGA5L3X7S2A225M160AE datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of CGA5L3X7S2A225M160AE?
TDK Corporation
