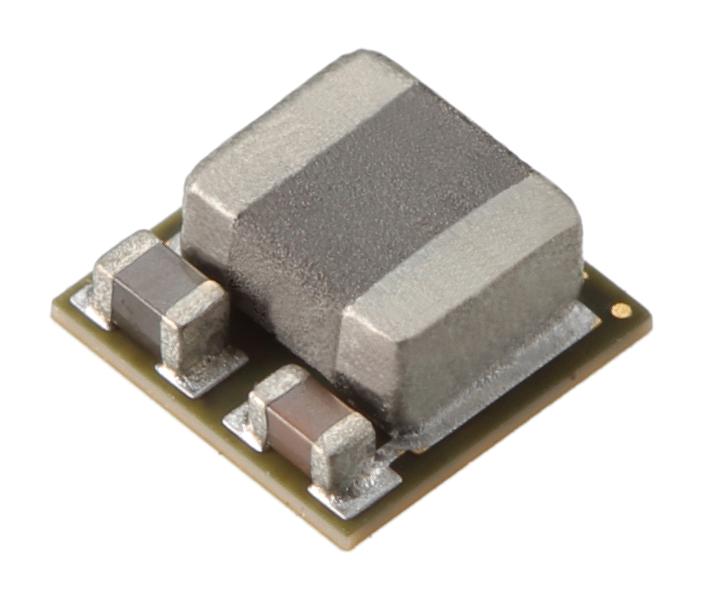

TDK Corporation FS14061800AS High-Current DC/DC Regulator
The FS1406 is a highly efficient, fully integrated micro-point-of-load (uPOL™) DC/DC voltage regulator with an integrated inductor, offering 6A continuous load capability. It features a compact 3.3mm x 3.3mm x 1.5mm package, programmable output voltage from 0.6V to 2.5V with ±0.5% accuracy, and wide input voltage range of 4.5-16V. It includes protections like over-voltage, over-current, thermal shutdown, and UVLO, making it ideal for storage, telecom, industrial, server, and computing applications. Its onboard digital power management and low profile design ensure reliable performance in space-constrained environments.
TDK Corporation FS14061800AS High-Current DC/DC Regulator Specifications:
- Size: 3.3mm x 3.3mm x 1.5mm
- Input Voltage Range: 4.5-16V
- Output Voltage: 0.6V to 2.5V, ±0.5% accuracy
- Continuous Load Current: 6A
- Operating Temperature: -40°C to +125°C
- Protection Features: Over-voltage, over-current, thermal shutdown, UVLO
- Package: Surface-mount, TMOS integrated with inductor
- Efficiency: Up to 95% at moderate loads
- Programmable via I²C protocol
- Built-in soft-start, power-good indicator, and point-of-load regulation
- Reliably suitable for industrial, telecom, energy storage, and server power systems
Buy the TDK FS1406 – Reliable DC-DC Power Module for Industrial Applications
Get the TDK FS1406 high-current DC/DC regulator online today. This compact, efficient power module with integrated inductor offers 6A load capacity, programmable output from 0.6V to 2.5V, and advanced protection features. Designed for industrial, telecom, server, and energy storage systems, it ensures reliable operation even in space-constrained environments. With easy programming via I²C, soft-start, power-good indicator, and thermal shutdown, this module simplifies system design and improves power management quality—order now to optimize your power systems with proven TDK reliability!
Order your TDK FS1406 high-current point-of-load regulator today and enhance your industrial power systems with our dependable compact DC/DC module.
Frequently Asked Questions
Where can I buy TDK Corporation FS14061800AS?
You can click on the BUY or RFQ button to purchase FS14061800AS from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part FS14061800AS?
You can download the FS14061800AS datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of FS14061800AS?
TDK Corporation
