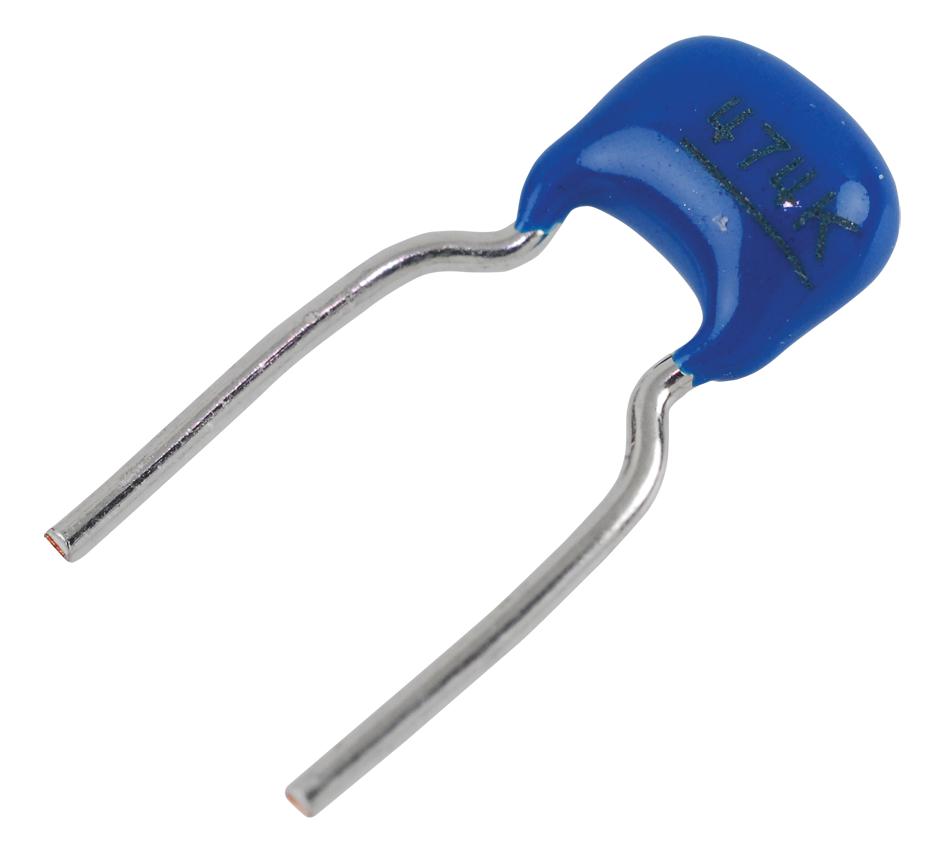

TDK Corporation FK20X7R1C156MR000 Mid-Voltage MLCC Capacitor
The FK series MLCC capacitors with dipped radial leads are ideal for mid-voltage applications ranging from 100 to 630V. These commercial-grade capacitors feature a unique structure designed for high withstand voltage in a compact size, ensuring reliable performance across various electronic devices. With options including X7R and other dielectric types, they offer stable capacitance and temperature characteristics, conforming to RoHS standards. Suitable for automatic insertion, these capacitors are available in multiple voltage ratings and capacitance ranges, making them versatile for industrial and consumer electronics.
TDK Corporation FK20X7R1C156MR000 Mid-Voltage MLCC Capacitor Specifications:
- Capacitance ranges: from 100pF to 33,000pF, with tolerance ±5% to ±10%
- Rated voltage: 100V, 250V, 630V
- Types: FK series including FK28, FK18, FK24, FK14, FK26, FK16, FK20, FK11, FK22
- Capacitor dielectric: X7R, Class 1 Temperature Compensation
- Dimensions: approximately 4.0mm to 7.5mm in maximum length, width varies by model
- Terminal type: Dipped radial leads with kinked formation for consistent insertion and gas release
- Conforms to RoHS Directive, lead-free design, suitable for automatic assembly
- Temperature characteristics: -55°C to +125°C, stable capacitance within specified ranges
- Packaging: Taping with quantities from 1500 to 2000 pieces per box, dimensions in mm for automated insertion
- Compliance: RoHS Directive conformant, subject to small specification variations
- Construction: Small in size with high voltage withstand, designed for high reliability in electronic circuits
Buy the TDK Series Mid Voltage MLCC: FK20X7R1C156MR000
Order the TDK FK20X7R1C156MR000 now to ensure your electronic projects benefit from high-quality, RoHS-compliant MLCC capacitors. These capacitors provide stable capacitance from 100V to 630V, catering to a wide range of industrial and consumer applications. Designed with a unique structure that withstands high voltage in a compact size, they feature radial leads with kinked formation for easy insertion and gas release during soldering, making assembly straightforward. Trust TDK for reliable, high-performance components delivered directly to your door for seamless integration into your devices.
Buy TDK FK20X7R1C156MR000 now and experience unmatched reliability, high voltage stability, and efficient solderability for your electronic assembly needs.
Frequently Asked Questions
Where can I buy TDK Corporation FK20X7R1C156MR000?
You can click on the BUY or RFQ button to purchase FK20X7R1C156MR000 from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part FK20X7R1C156MR000?
You can download the FK20X7R1C156MR000 datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of FK20X7R1C156MR000?
TDK Corporation
