TDK Corporation FS14061050AS Micro Power Regulator
The FS1406 is a compact, highly efficient 6A DC-DC buck regulator with integrated inductor, designed for high-density applications. It offers programmable output voltage from 0.6V to 2.5V, operates over a wide input range of 4.5V to 16V, and includes built-in protection features like over-voltage, over-current, thermal shutdown, and programmable under-voltage lockout. Its small HPOL™ package measures 3.3mm x 3.3mm x 1.5mm, making it ideal for portable and space-constrained systems such as storage, telecom, industrial, and server applications. It supports digital system management with I²C programmable parameters.
TDK Corporation FS14061050AS Micro Power Regulator Specifications:
- Package: 3.3mm x 3.3mm x 1.5mm HPOL™ package
- Maximum Load Current: 6A
- Input Voltage Range: 4.5V to 16V
- Output Voltage Range: 0.6V to 2.5V, initial accuracy ±0.5%
- Switching Frequency: factory-programmed, default 2MHz
- Efficiency at 12V: up to 90% depending on load and output voltage
- Protection Features: OVP, OCP with hiccup, thermal shutdown, UVLO
- Operating Temperature: -40°C to +125°C
- Built-in inductor and capacitors for compact design
- Integrated PWM controller and high-side MOSFETs for high efficiency
- Open-drain power-good indicator for system monitoring
- Digital programmability via I²C interface
- RoHS and REACH compliant, lead-free and halogen-free

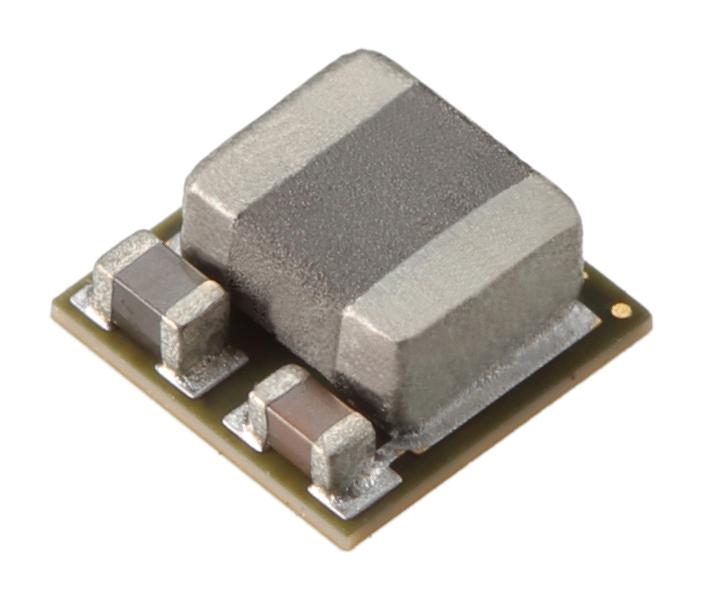

Buy the TDK Series FS1406 Buck Regulator: 6A Integrated Inductor 3.3x3.3mm Part1505
Upgrade your electronic system with the compact and highly efficient TDK FS1406 buck regulator. Designed for space-constrained applications, it features integrated inductor, programmable output from 0.6V to 2.5V, and supports up to 6A load current. Its wide input voltage range of 4.5V to 16V, along with advanced protection features like OVP, OCP, thermal shutdown, and UVLO, ensures robust operation in demanding environments. Programmable via I²C, it simplifies system design and enhances system reliability. Order online today for easy integration into your power architecture and optimize performance with a reliable, high-quality regulator.
Buy TDK FS1406 now and experience unmatched reliability and performance in space-efficient power solutions for industrial, telecom, and storage devices.
Frequently Asked Questions
Where can I buy TDK Corporation FS14061050AS?
You can click on the BUY or RFQ button to purchase FS14061050AS from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part FS14061050AS?
You can download the FS14061050AS datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of FS14061050AS?
TDK Corporation
