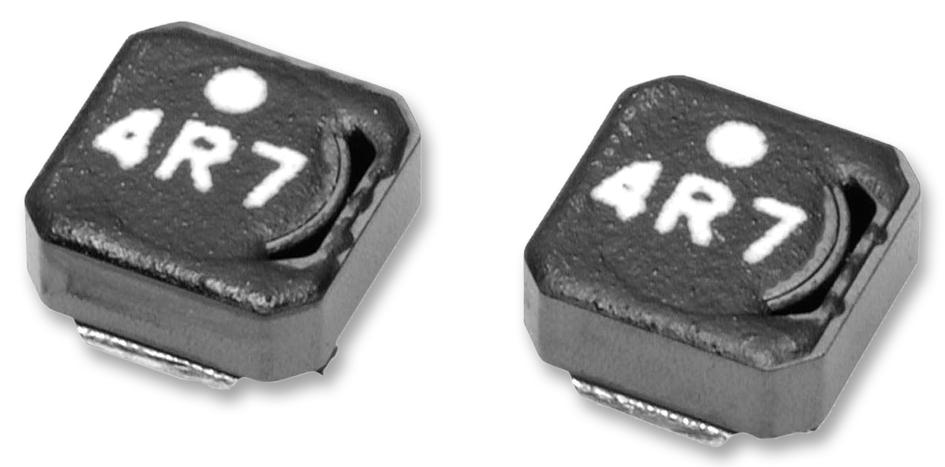

TDK Corporation VLCF4018T330MR422 Power Inductor
The VLCF4018-2 series consists of compact, low-profile wound ferrite inductors designed for efficient power circuits in mobile devices and DC-DC converters. These inductors feature a magnetic shield construction with ferrite cores, ensuring minimal interference and high performance in applications such as HDDs, DVCs, LCDs, and other electronic devices. Operating within a temperature range of -40°C to +105°C, they are supplied in tape packaging with a typical weight of 106 mg and include specifications for electrical characteristics, dimensions, and recommended reflow profiles for reliable manufacturing.
TDK Corporation VLCF4018T330MR422 Power Inductor Specifications:
- Type: Wound ferrite inductor
- Series: VLCF4018
- Part Number: VLCF4018T330MR422
- Dimensions: 4.0x4.0x1.8 mm
- Operating Temperature Range: -40°C to +105°C
- Storage Temperature Range: -40°C to +105°C
- Package Quantity: 1000 pieces/reel
- Weight: 106 mg
- Core Material: Ferrite
- Magnetic Shield: Yes
- Inductance: 3.3 μH ±30%
- Rated Current: less than or equal to 1.93A
- DC Resistance: Typical 0.079 Ω
- Quality Factor (Q): Typical 1.26
- Application: Power source inductor for mobile devices, LCDs, DC/DC converters
- RoHS Compliant: Yes
- Halogen-free: Yes
- Recommended Reflow Profile: Preheating at 130°C for 110s, soldering at 200°C for 90s, peak at 260°C for 5s
Buy the TDK VLCF4018– Reliable Power Inductor for Industrial Applications
Enhance your electronic devices with the TDK VLFC4018 series power inductor. Designed for high efficiency and reliable operation, these inductors feature magnetic shielding for minimal interference and optimal performance in mobile devices, DC-DC converters, LCDs, and other critical applications. With a compact size of 4.0x4.0x1.8 mm, operating range of -40°C to +105°C, and RoHS compliance, they are ideal for high-density circuit design. Purchase online now for consistent quality and fast delivery to support your manufacturing or repair needs.
Order your TDK Series VLCF4018T330MR422 low-profile ferrite inductor today and ensure dependable power management in your electronic projects.
Frequently Asked Questions
Where can I buy TDK Corporation VLCF4018T330MR422?
You can click on the BUY or RFQ button to purchase VLCF4018T330MR422 from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part VLCF4018T330MR422?
You can download the VLCF4018T330MR422 datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of VLCF4018T330MR422?
TDK Corporation
