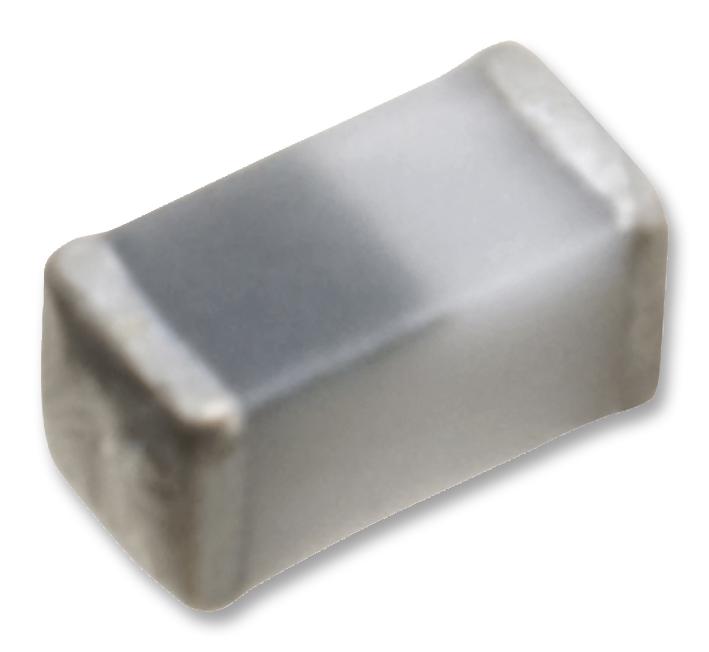

TDK Corporation MLG0603P22NJT000 High Frequency Ceramic Inductor
The inductor series offers high-frequency multilayer ceramic inductors suitable for RF applications. The MLG series includes compact, RoHS-compliant designs with detailed electrical specifications. These inductors are optimized for mobile communication modules, Bluetooth, Wi-Fi, and other high-frequency circuits. Featuring low DC resistance, high Q, and stable inductance over operating temperatures from -55°C to +125°C, they ensure reliable performance in fine-pitch, miniaturized electronic devices with a size lineup from 0402 to 0603 packages.
TDK Corporation MLG0603P22NJT000 High Frequency Ceramic Inductor Specifications:
- Series: MLG-P, MLG-Q
- Package sizes: 0402 [0.4x0.2mm], 0603 [0.6x0.3mm]
- Operating temperature: -55°C to +125°C
- Storage temperature: -55°C to +125°C
- Quantity per reel: 20,000 pieces for 0402, 15,000 pieces for 0603
- Dimensions in mm: 0.4x0.2 (MLG0402), 0.6x0.3 (MLG0603)
- Inductance range: 0.2nH to 120nH with 0.1nH steps
- Q factor: up to 800MHzz or higher
- DC resistance: as low as 0.06Ω
- Material: Ceramic, conductive sintering for high Q
- RoHS compliant & Halogen-free, suitable for lead-free soldering
- Designed for high-frequency modules, RF circuits, Bluetooth, WLAN, and mobile communications
Buy the Buy TDK MLG-Q Series Inductor Part Number MLG0603P22NJT000 Online
Purchase the TDK MLG0603P22NJT000 high-frequency ceramic inductor online today and ensure your RF modules, Bluetooth, Wi-Fi, and mobile circuits operate with high Q, stable inductance, and excellent thermal performance. These small, RoHS-compliant components are ideal for high-density circuit designs demanding reliable, low-resistance inductors. Benefit from quick delivery, trusted quality, and specifications optimized for high-frequency applications, ensuring your project’s success in compact, modern electronic devices.
Order your TDK MLG0603P22NJT000 high-frequency inductor today and enhance your RF and mobile communication circuit reliability with this compact, RoHS-compliant component.
Frequently Asked Questions
Where can I buy TDK Corporation MLG0603P22NJT000?
You can click on the BUY or RFQ button to purchase MLG0603P22NJT000 from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part MLG0603P22NJT000?
You can download the MLG0603P22NJT000 datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of MLG0603P22NJT000?
TDK Corporation
