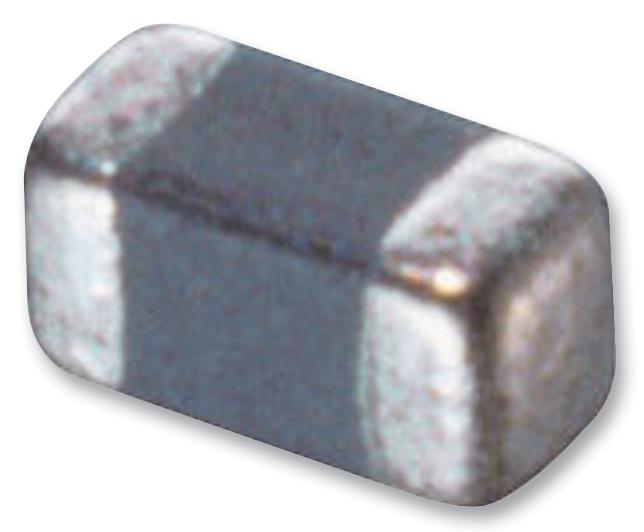

TDK Corporation MMZ0603D470ET000 Chip Bead
The MMZ0603D470ET000 chip bead from the EMC Components & TDK series is designed for RF noise suppression in high-speed and general signal lines. It features high impedance at GHz frequencies, making it ideal for mobile devices, PCs, household appliances, and industrial equipment. Operating from -55°C to +125°C, it offers reliable performance for electromagnetic interference reduction, ensuring stable signals across a broad spectrum of electronic applications. Its compact 0603 package size ensures easy integration into dense circuits and modules with excellent noise countermeasure capabilities.
TDK Corporation MMZ0603D470ET000 Chip Bead Specifications:
- Series: MMZ-E series
- Package Size: 0603 (0.6x0.3x0.3 mm)
- Impedance at 100MHz: 120Ω +25%
- Impedance at 1GHz: 200Ω +25%
- Rated Current: 40% of rated current varies by model
- DC resistance: Ranges from 0.37Ω to 2.90Ω depending on part
- Operating Temperature Range: -55°C to +125°C
- Material: Various options for broad frequency countermeasures
- Frequency Characteristics: Wide range, optimized for GHz bands
- Packaging: Reel, 41504 pcs per reel
- Dimensions: 0.6x0.3x0.3 mm, recommended land pattern 0.68x0.51 mm
- Max soldering reflow profile: 250-260°C, 300 min., Using natural cooling
- Storage Conditions: 5°C to 40°C, 10-75% RH, shelf life 12 months
- Application: Mobile devices, PCs, household appliances, industrial equipment
Buy the TDK Series MMZ-E Chip Beads: MMZ0603D470ET000
Order the TDK MMZ0603D470ET000 chip bead online today to ensure your electronic projects benefit from high impedance noise suppression. This compact and efficient component is suitable for mobile devices, PCs, household appliances, and industrial equipment, operating across a broad temperature range. Its design allows for easy integration into dense circuit layouts, providing excellent GHz frequency noise attenuation. With reliable manufacturing standards, this chip bead guarantees stable performance and long-term durability, making it an essential component for reducing electromagnetic interference and ensuring signal integrity in modern electronic systems.
Buy TDK MMZ0603D470ET000 chip bead now and experience unmatched reliability and noise suppression performance for high-speed signal lines.
Frequently Asked Questions
Where can I buy TDK Corporation MMZ0603D470ET000?
You can click on the BUY or RFQ button to purchase MMZ0603D470ET000 from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part MMZ0603D470ET000?
You can download the MMZ0603D470ET000 datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of MMZ0603D470ET000?
TDK Corporation
