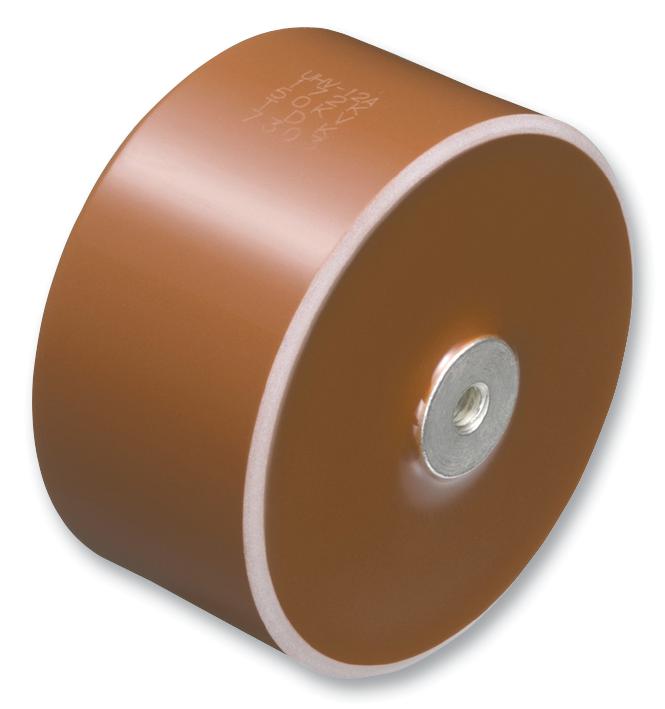

TDK Corporation UHV241A High Voltage Ceramic Capacitor
The UHV series features ultra high voltage ceramic capacitors with metal terminals, designed for high voltage power supplies and lasers. These capacitors offer low ESR, low-loss operation, and high reliability using molded resin and metal screw terminals for easy mounting. Operating within -30°C to +85°C, they are suitable for high-voltage industrial, medical, lithography, and analyzer applications, with minimum dielectric resistance of 100,000 MΩ and withstand voltages up to 75 kV. These RoHS-compliant components ensure safe and efficient high-voltage circuit performance.
TDK Corporation UHV241A High Voltage Ceramic Capacitor Specifications:
- Rated Voltage: 20 to 50 kV
- Capacitance Range: 100 pF to 4,000 pF
- Temperature Range: -30°C to +85°C
- Insulation Resistance: ≥100,000 MΩ at 25°C
- Dissipation Factor (tan): Max 0.2%
- Withstanding Voltage: 1.4 to 4 times rated voltage depending on part
- Material: High-reliability molded resin
- Terminals: Metal screw terminals (M4 to M5)
- Dimensions vary with model, typical weight 14-297 grams
- RoHS Compliant
- Application: High voltage power supplies, lasers, industrial analyzers, lithography
- Operating Temperature: -30°C to +85°C
Buy the TDK UHV241A – Reliable High Voltage Ceramic Capacitors for Industrial Applications
Order the TDK UHV241A high voltage ceramic capacitor online today to ensure high reliability, low ESR, and safe operation in your power supply, laser, and industrial circuit applications. These RoHS-compliant capacitors offer excellent dielectric stability, high withstand voltage up to 75 kV, and low dissipation factor, making them ideal for demanding high-voltage environments. Enjoy fast delivery, easy ordering, and the confidence of using quality components designed for professional and industrial use to guarantee your equipment's safety and efficiency.
Buy TDK UHV241A high voltage ceramic capacitor now and experience unmatched reliability and performance for your industrial and laser power supply projects.
Frequently Asked Questions
Where can I buy TDK Corporation UHV241A?
You can click on the BUY or RFQ button to purchase UHV241A from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part UHV241A?
You can download the UHV241A datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of UHV241A?
TDK Corporation
