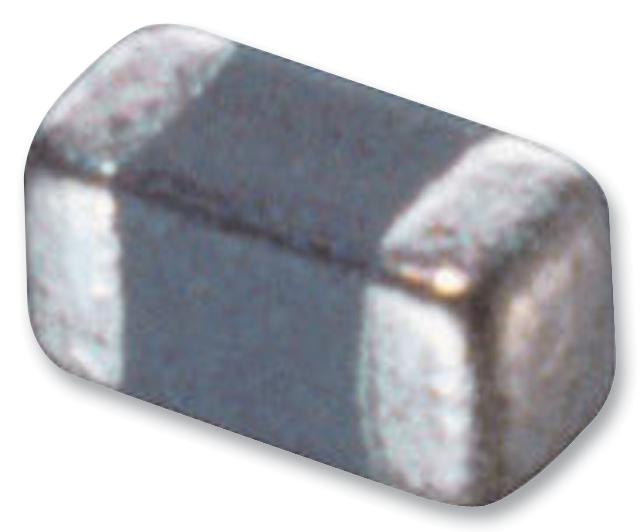

TDK Corporation MMZ0603F560ET000 Chip Bead
The MMZ0603F560ET000 chip bead is designed for noise suppression in high-speed signal lines and general signal circuits. It offers high impedance at GHz bands, making it ideal for mobile devices like smartphones, tablets, PCs, and household appliances such as STBs and smart grids. With an operating temperature range of -55°C to +125°C, it ensures stable performance in various environments. Its compact 0.6 x 0.3 x 0.3 mm dimensions and diverse material options provide effective noise filtering across multiple frequency ranges, enhancing signal integrity and electromagnetic compatibility.
TDK Corporation MMZ0603F560ET000 Chip Bead Specifications:
- Dimensions: 0.6 x 0.3 x 0.3 mm
- Impedance at 100MHz: 120 Ω ±25%
- Impedance at 1GHz: 200 Ω to 1800 Ω depending on model
- DC Resistance: 0.37 Ω to 2.60 Ω
- Rated Current: 125 mA to 250 mA
- Operating Temperature Range: -55°C to +125°C
- Material Options: Various to target different frequency characteristics
- Frequency Range: From 100MHz to GHz bands
- Certification: UL Listed, CSA Certified (implied)
- Packaging Style: Reels for automated placement
- Material: Tin-plated copper internal conductors
- Application: Noise filtering for high-speed and general signal lines in electronics
Buy the Buy EMC Components TDK Chip Beads Part Number MMZ0603F560ET000 Online
Optimize your electronic designs by purchasing the MMZ0603F560ET000 chip bead online today. Featuring high impedance at GHz frequencies and broad temperature tolerance, this compact component effectively suppresses noise in high-speed signal lines. Suitable for mobile devices, PCs, and household appliances, it offers reliable performance. Its small size allows easy integration into dense circuit boards, ensuring signal clarity and electromagnetic compatibility. Order now to enhance your device’s electromagnetic compatibility with this high-quality noise filter solution.
Buy EMC Components TDK MMZ0603F560ET000 now and experience unmatched noise filtering and signal integrity for your high-speed electronics.
Frequently Asked Questions
Where can I buy TDK Corporation MMZ0603F560ET000?
You can click on the BUY or RFQ button to purchase MMZ0603F560ET000 from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part MMZ0603F560ET000?
You can download the MMZ0603F560ET000 datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of MMZ0603F560ET000?
TDK Corporation
