TDK Corporation MPZ1005S121HT000 Noise Suppression Chip Bead
The MPZ1005-H series chip beads are designed for noise reduction in power lines, offering low resistance and high current capacity for mobile devices, PCs, and household appliances. These 1.0x0.5x0.5 mm components operate within -55 to +125°C temperature range, providing effective EMI suppression for smartphones, tablets, and industrial equipment. Their downsized 1608 shape simplifies installation while delivering over 30% lower resistance compared to previous models, ensuring improved power efficiency and circuit stability. Ideal for compact designs requiring reliable high-current noise filtering.
TDK Corporation MPZ1005S121HT000 Noise Suppression Chip Bead Specifications:
- Dimensions: 1.0x0.5x0.5 mm
- Material: Ceramic
- Impedance at 100MHz: 33 Ohm (±25%), 90 Ohm (±25%), 120 Ohm (±25%), 180 Ohm (±25%), 220 Ohm (±25%)
- DC Resistance Max: 0.022 to 0.095 Ohm depending on model
- Rated Current: 3.0A, 23A, 20A, 1.6A, 15A respectively
- Operating Temperature Range: -55°C to +125°C
- Package Style: 1608 size, SMD surface mount
- Frequency Range: Up to 10,000 MHz
- Packaging: Reel quantity 10 pcs, taped
- Preheating Temperature: 60°C to 120°C for 30-60 sec during soldering
- Storage Conditions: 5°C to 40°C, humidity 10-75% RH, max 12 months

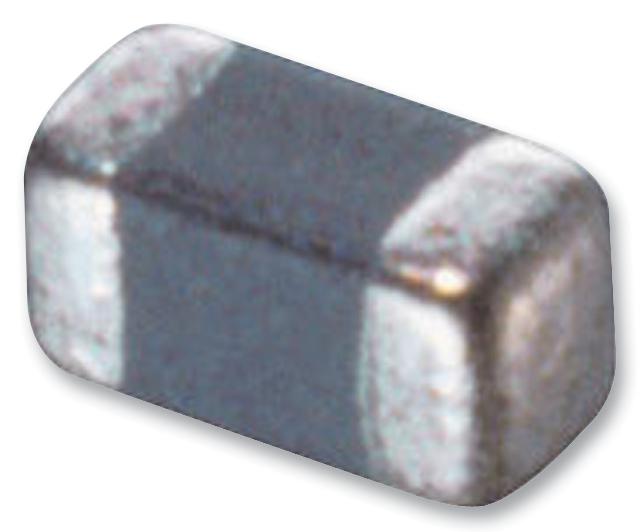

Buy the Buy TDK MPZ Series Noise Suppression Chip Beads Part Number MPZ1005S121HT000 Online
Discover the high-performance TDK noise suppression chip bead MPZ1005S121HT000, perfect for EMI reduction in compact electronic circuits. Its small 1.0x0.5x0.5 mm size simplifies surface-mount assembly while delivering excellent impedance up to 10,000 MHz. Suitable for smartphones, tablets, industrial equipment, and household appliances, this component operates across -55°C to +125°C, supporting high current ratings with low resistance. Purchase online today to enhance circuit stability and reduce electromagnetic interference efficiently.
Order your TDK MPZ1005S121HT000 chip bead today and ensure reliable noise filtering for your power-line applications with easy, compact installation.
Frequently Asked Questions
Where can I buy TDK Corporation MPZ1005S121HT000?
You can click on the BUY or RFQ button to purchase MPZ1005S121HT000 from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part MPZ1005S121HT000?
You can download the MPZ1005S121HT000 datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of MPZ1005S121HT000?
TDK Corporation
