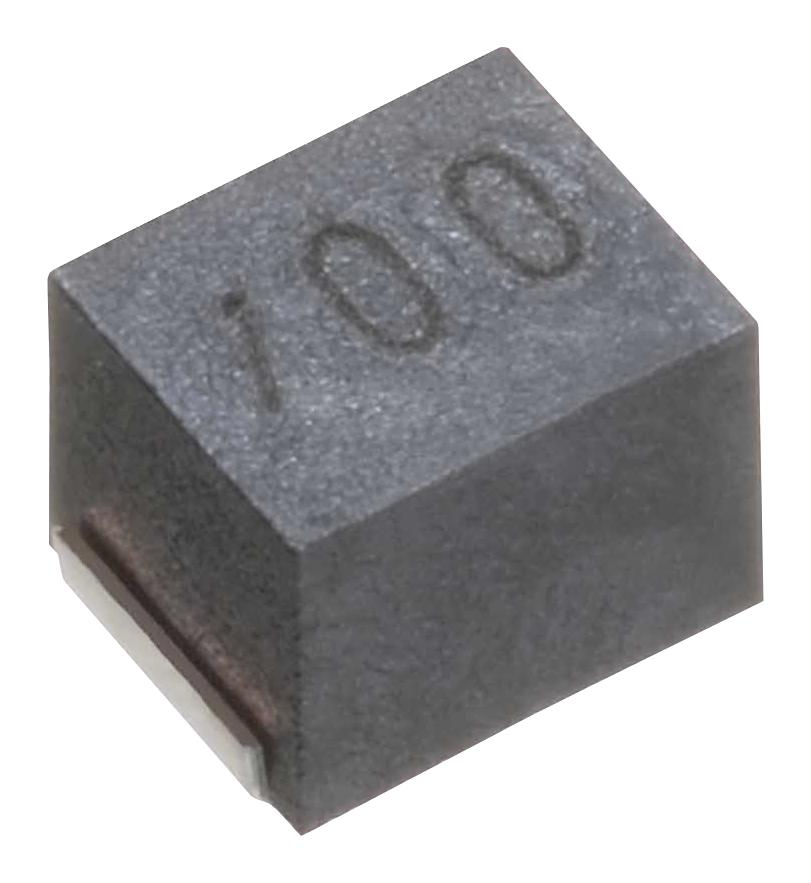

TDK Corporation NLCV32T6R8MEFRD Automotive Decoupling Inductor
The NLCV32-EFRD is a resin mold type wound inductor designed for decoupling circuits in automotive applications. It features a compact design suitable for vehicle accessories like navigation systems, car audio, and electronic toll collection. The inductor is compliant with RoHS standards and lead-free solders, ensuring environmental safety. It operates within a temperature range of -40°C to +125°C and is packaged in tape for easy automated mounting. Its electrical characteristics include a variety of inductance options with low resistance and high-quality performance for automotive decoupling needs, with specifications optimized for durability and reliability in harsh environments.
TDK Corporation NLCV32T6R8MEFRD Automotive Decoupling Inductor Specifications:
- Type: Resin mold wound inductor for decoupling circuits
- Application: Vehicle accessories such as car navigation, car audio, ETC
- Operating Temperature Range: -40°C to +125°C
- Storage Temperature Range: -40°C to +125°C
- Package Quantity: 2000 pieces/reel
- Individual Weight: 50 mg
- RoHS Compliance: Yes
- Lead-Free: Yes
- Dimensions: 3.2x2.5x2.2 mm (LxWxH)
- Materials: Ferrite core, resin mold
- Inductance Range: 0.1 µH to 68 µH
- DC Resistance: 0.02 to 0.45 Ω
- Rated Current: 600 to 2850 mA depending on model
- Packaging Style: Taping
- Recommended Reflow Profile: Preheating at 150°C 180°C, Peak temperature 255°C with controlled cooling
Buy the TDK NLCV32T6R8MEFRD – Reliable Automotive Decoupling Inductor for Industrial Applications
Purchase the TDK automotive decoupling inductor NLCV32T6R8MEFRD online today. Designed for vehicle electronics, this high-quality, RoHS-compliant component offers excellent performance in demanding environments. With a compact size of 3.2 by 2.5 by 2.2 mm, it supports various inductance levels, low resistance, and high current capacity. Perfect for navigation, audio systems, and ETC devices, ensure reliable, long-lasting performance in automotive decoupling circuits with quick online ordering.
Get TDK NLCV32T6R8MEFRD today—built for automotive decoupling circuits with high durability and efficiency in vehicle electronics.
