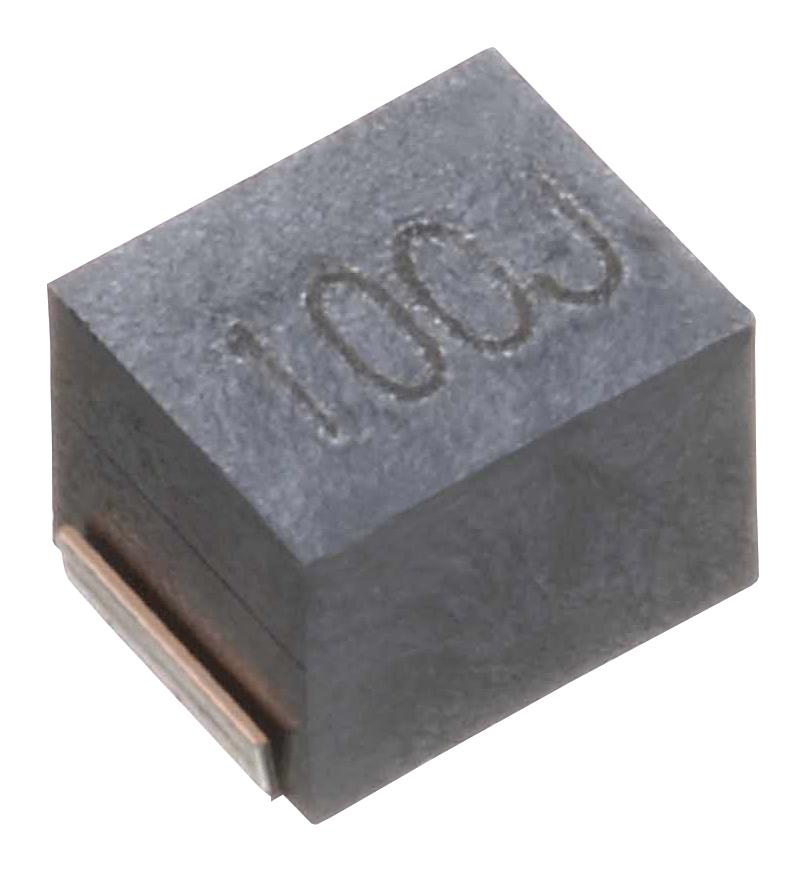

TDK Corporation NLV32T101JEF Wound Ferrite Inductor
The NLV32-EF series are resin-molded wound ferrite inductors designed for standard circuits, including filter applications and communication infrastructure. They feature excellent temperature stability, RoHS compliance, and a compact 3.2x2.5x22 mm size, suitable for smart meters, AV equipment, and xDSL. These inductors operate from -40°C to +105°C, are available in tape packaging with 2000 pieces per reel, and have a measured weight of 50 mg. They are halogen-free, meet safety standards, and offer stable inductance characteristics across a wide temperature range.
TDK Corporation NLV32T101JEF Wound Ferrite Inductor Specifications:
- Dimensions: 3.2x2.5x22 mm
- Operating Temperature Range: -40°C to +105°C
- Storage Temperature Range: -40°C to +105°C
- Package Quantity: 2000 pieces per reel
- Weight per piece: approximately 50 mg
- RoHS Compliant, Halogen-free
- Tolerance: ±5% or ±10%
- Material: Resin mold, ferrite core
- Inductance Range: 0.01 μH to 6.8 μH
- Self-resonant frequency: Up to 100 MHz
- DC Resistance: Minimum 0.13 Ω, maximum 0.44 Ω (varies by part)
- Rated Current: Up to 740 mA depending on inductance
- Compatibility with RoHS directive, suitable for general electronics, industrial, communication, and AV applications
Buy the Buy TDK NLV32-EF Part Number NLV32T101JEF Online
Enhance your circuit designs with the TDK NLV32T101JEF ferrite inductor, ideal for applications requiring stable inductance and reliable performance. This resin-molded, RoHS-compliant component offers excellent temperature stability from -40°C to +105°C, making it suitable for smart meters, AV equipment, and communication infrastructure. Compact and lightweight at 50 mg, it comes in a tape pack of 2000 pieces per reel. Designed for durability and ease of use, order online today to ensure your project benefits from high-quality inductors with consistent performance.
Get TDK NLV32T101JEF today—built for precision and long-lasting durability in electronic filtering and communication circuits.
Frequently Asked Questions
Where can I buy TDK Corporation NLV32T101JEF?
You can click on the BUY or RFQ button to purchase NLV32T101JEF from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part NLV32T101JEF?
You can download the NLV32T101JEF datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of NLV32T101JEF?
TDK Corporation
