TDK Corporation NLV32T560JEF Ferrite Inductor
The NLV32-EF series is a resin-molded wound ferrite inductor designed for standard circuits. It features a wide lineup compatible with JIS EIA standard sizes, suitable for applications like smart meters, AV equipment, communication infrastructure such as mobile base stations, and industrial equipment. These inductors offer excellent temperature characteristics, RoHS compliance, and are compatible with lead-free solders. Their robust design ensures reliable performance in various electronic devices, with specifications optimized for precision filtering and power management in compact layouts, featuring a typical operating temperature from 40°C to +105°C.
TDK Corporation NLV32T560JEF Ferrite Inductor Specifications:
- Series name: NLV32-EF
- Dimensions: 3.2 x 2.5 x 22 mm
- Inductance range: 0.01 μH to 15 μH
- Tolerance: ±5% or ±25%
- Operating temperature: -40°C to +105°C
- Storage temperature: -40°C to +105°C
- Maximum DC resistance: varies by model, typically around 0.13 to 0.75 Ω
- Rated current: up to 70 mA depending on inductance
- RoHS compliance and halogen-free
- Package quantity: 2000 pieces per reel
- Self-resonant frequency: up to 100 MHz
- Classification: Suitable for filter circuits, power applications, and high-frequency filtering
- Material: Ferrite core with resin mold
- Mounting: Surface-mount technology with recommended land pattern

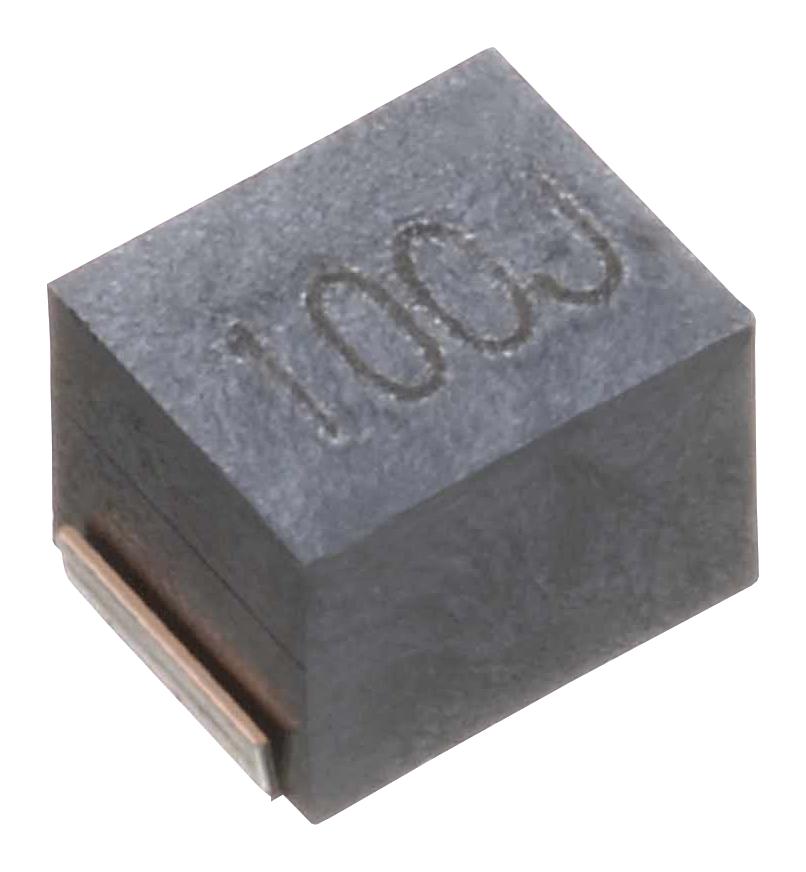

Buy the TDK Series NLV32 EF Inductor: NLV32T560JEF
Purchase the TDK NLV32T560JEF ferrite inductor online today for reliable performance in your electronic circuits. This surface-mount component is designed for high-frequency filtering, power management, and precision applications across communication, industrial, and consumer electronics. Featuring RoHS compliance, lead-free compatibility, excellent temperature stability, and a wide inductance range, it ensures robust operation in demanding environments. Ideal for engineers and technicians seeking high-quality inductors to enhance circuit performance and ensure long-term durability in various projects. Order now for fast delivery and optimal circuit performance.
Get TDK NLV32T560JEF today—built for precision and long-lasting durability in electronic filtering and power management applications.
Frequently Asked Questions
Where can I buy TDK Corporation NLV32T560JEF?
You can click on the BUY or RFQ button to purchase NLV32T560JEF from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part NLV32T560JEF?
You can download the NLV32T560JEF datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of NLV32T560JEF?
TDK Corporation
