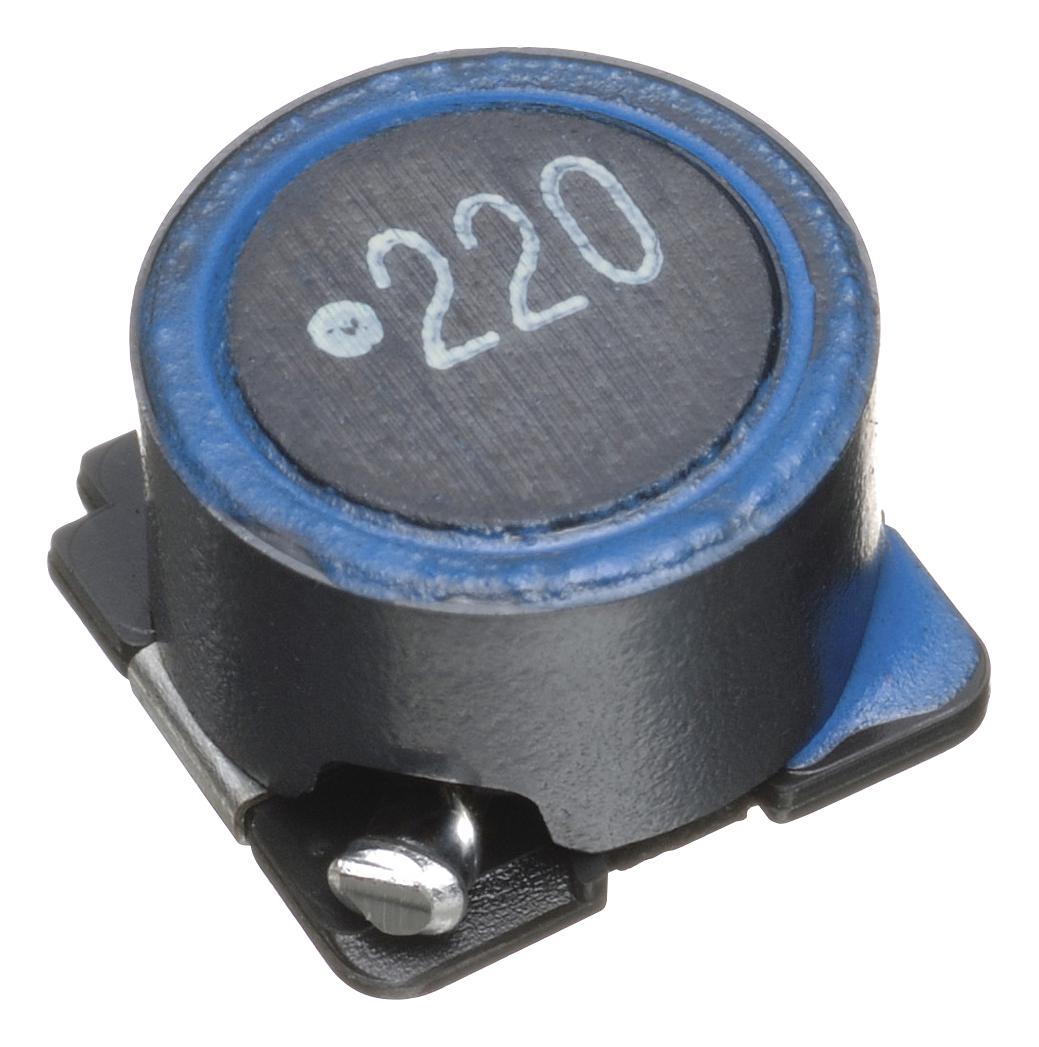

TDK Corporation SLF10165T220M2R43PF Power Inductor
The SLF10165 series inductor is a magnetic shield wound ferrite inductor designed for power circuits used in electronic devices such as TVs, LCDs, AV equipment, and gaming consoles. It features a compact size of 10.1x10.1x6.5 mm, operates from -40°C to +105°C, and offers rated currents from 27mA to 700mA depending on inductance and tolerance. Manufactured with low DC resistance, this inductor provides high performance for noise filtering and power regulation in compact electronic systems.
TDK Corporation SLF10165T220M2R43PF Power Inductor Specifications:
- Dimensions: 10.1 x 10.1 x 6.5 mm
- Inductance: ranges from 1.5 μH to 70 μH
- Tolerance: ±30%
- Rated current: up to 700 mA depending on model
- DC resistance: varies per inductance, e.g., 2.2 μH has 8.4 mΩ
- Operating temperature: -40°C to +105°C (including self-temperature rise)
- Material: Ferrite core with magnetic shield
- Packaging: Reel of 500 pcs
- Soldering profile: Preheating at 150°C for 60-120s, peak temperature at 230°C for 5 seconds
- Application: Power filtering in TVs, LCDs, AV, gaming, and electrical devices
Buy the Electrical Components Series SLF: Inductor 1R5
Purchase the ELNA Series SLF10165 power inductor online now to ensure optimal performance in your electronic projects. With a compact size of 10.1x10.1x6.5 mm, it provides excellent noise filtering, power regulation, and high-rated currents up to 700mA. Designed for use in portable devices, TVs, LCDs, AV, and gaming equipment, this ferrite inductor ensures reliable operation within a temperature range of -40°C to +105°C. Easy to install with reel packaging, it offers durability and stability for long-term use in various electronic circuits.
Get ELNA Series SLF10165 power inductor today—built for precision and long-lasting durability.
