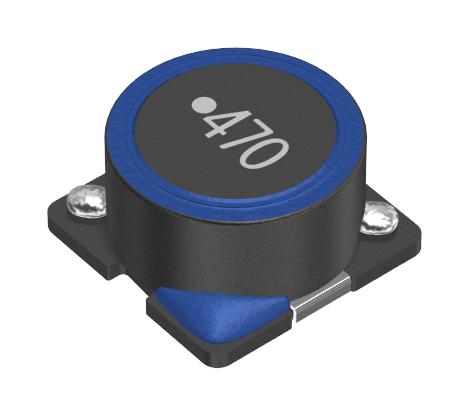

TDK Corporation SLF12565T101M1R6PF Power Inductor
The SLF12565 series high-frequency wound ferrite inductor is designed for power circuits in electronic devices such as TVs, LCDs, and AV equipment. It features a magnetic shield for reduced electromagnetic interference, operates within -40 to +105°C, and offers various inductance and current ratings for flexible applications. Compact dimensions and high self-resonance make it suitable for smoothing and filtering in high-density circuit boards, ensuring reliable performance and minimal energy loss.
TDK Corporation SLF12565T101M1R6PF Power Inductor Specifications:
- Dimensions: 12.5x12.5x6.5 mm
- Inductance: 1.0 µH to 470 µH (varies by model)
- Tolerance: ±30%
- Operating temperature range: -40°C to +105°C
- Rated current: varies by model; higher for lower inductance values
- DC Resistance: ranges from approximately 0.0117 Ω to 0.273 Ω
- Saturation current: based on each model's Isat ratings
- Material: Ferrite core with magnetic shield
- Packaging: Reel, 500 pcs/reel
- Peak reflow temperature: 250°C, with preheating and cooling guidelines
- Application: Power filtering, energy storage in electronic devices
Buy the Elna Series SLF Inductor: SLF12565T101M1R6PF
Enhance your electronic designs with the high-quality power inductor from the SLF series. Designed for power filtering and energy storage, it features a compact form factor, magnetic shielding, and a wide operating temperature range from -40°C to +105°C. The inductor offers reliable inductance values from 1.0 µH to 470 µH, low DC resistance, and high saturation current. Ideal for use in TVs, LCDs, AV equipment, and gaming devices, ensuring stable operation and efficient power management.
Get Elna SLF12565T101M1R6PF today—built for high-frequency power filtering in compact electronic circuits.
Frequently Asked Questions
Where can I buy TDK Corporation SLF12565T101M1R6PF?
You can click on the BUY or RFQ button to purchase SLF12565T101M1R6PF from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part SLF12565T101M1R6PF?
You can download the SLF12565T101M1R6PF datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of SLF12565T101M1R6PF?
TDK Corporation
