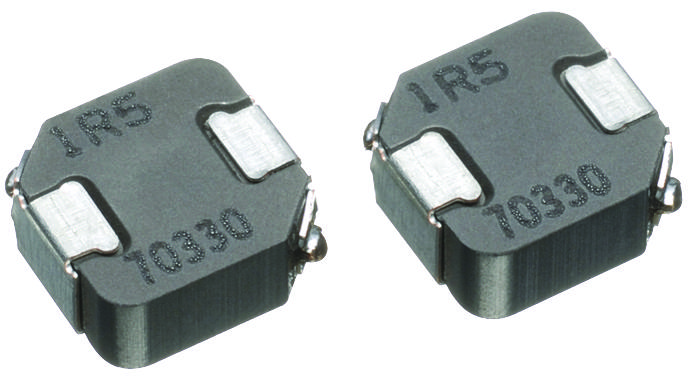

TDK Corporation SPM6530T1R5M100 Magnetic Shield Inductor
The SPM6530 is a low-profile, magnetic shield type wound inductor designed for power circuits, offering high current capacity, low Rde, and compact form factor. Made with metallic magnetic material, it ensures stable inductance in high-temperature environments with low noise. Suitable for use in smartphones, laptops, servers, and power modules, this inductor features excellent DC superimposition and is compliant with RoHS standards, making it a reliable choice for compact, high-efficiency power management systems.
TDK Corporation SPM6530T1R5M100 Magnetic Shield Inductor Specifications:
- Dimensions: 7.1x6.5x3.0 mm
- Temperature Range: -40°C to +125°C
- Inductance: 0.25 to 47 uH with +20% tolerance
- Rated Current: up to 28.5 A
- DC Resistance: as low as 2.31 mΩ
- Material: Metallic magnetic core with molded coil
- Operating Frequency: 100 kHz
- RoHS and OHS Directive Compliant
- Package Quantity: 1000 pieces/reel
- Weight: 0.656 g
Buy the Buy TDK SPM6530 Part Number SPM6530T1R5M100 Online
Purchase the TDK SPM6530 Series magnetic shield inductor today for reliable power management in your electronic designs. With its low-profile design, high current capacity, and excellent DC superimposition resistance, it ensures efficient operation in smartphones, laptops, servers, and power modules. RoHS compliant, with a typical weight of 0.656 grams and dimensions of 7.1 by 6.5 by 3.0 mm, this inductor offers excellent thermal stability and durability. Secure your supply chain by ordering online now for rapid delivery and technical support.
Order your TDK SeriesS M6530 magnetic shield inductor today and enhance your power circuits with high current capacity, low noise, and compact design.
Frequently Asked Questions
Where can I buy TDK Corporation SPM6530T1R5M100?
You can click on the BUY or RFQ button to purchase SPM6530T1R5M100 from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part SPM6530T1R5M100?
You can download the SPM6530T1R5M100 datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of SPM6530T1R5M100?
TDK Corporation
