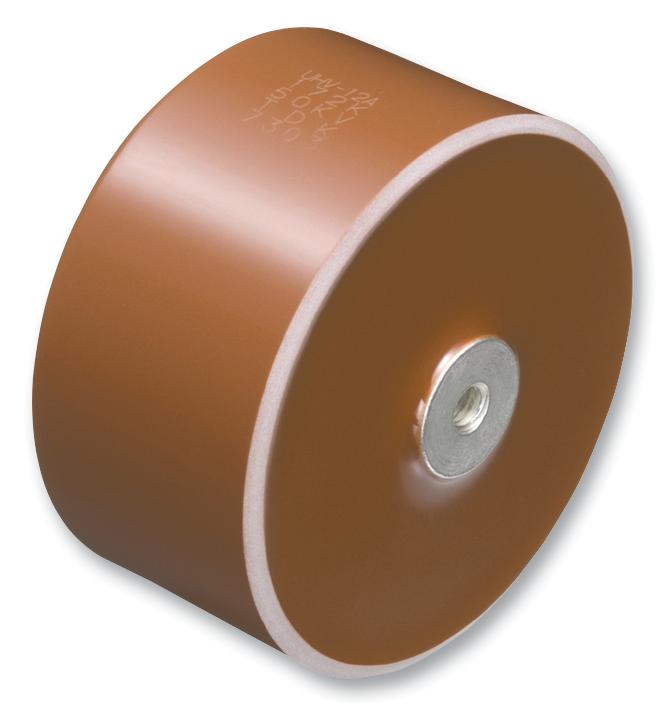

TDK Corporation UHV224A High Voltage Ceramic Capacitor
The UHV series features ultra high voltage ceramic capacitors with metal terminals designed for high voltage power supplies and lasers. These capacitors offer low ESR and low distortion, ensuring reliable performance in high-voltage circuits such as medical devices, lithography, and industrial analyzers. Their molded resin construction ensures high reliability and durability, with operation temperature ranging from -30°C to +85°C. Available in various capacitance and voltage ratings up to 50kV, they meet RoHS compliance and are suitable for demanding industrial applications requiring stability and safety at high voltages.
TDK Corporation UHV224A High Voltage Ceramic Capacitor Specifications:
- Rated voltage: 20 to 50kV
- Capacitance range: 200pF to 4,000pF
- Operating temperature: -30°C to +85°C
- Storage temperature: -30°C to +85°C
- Weight: 14g to 297g depending on model
- Terminal type: Molded metal screw terminals
- Insulation resistance: 100000 MΩ min.
- Dissipation factor (tan): 0.2% to 0.5%
- DC bias voltage: up to 50kV
- Compliance: RoHS
- Temperature stability: Z5T (+10 to +85°C)
- Withstanding voltage (1 min. in oil): Up to 30kV
- Impregnated with high-reliability mold resin
Buy the TDK UHV224A – Reliable High Voltage Ceramic Capacitors for Industrial Applications
Enhance your high-voltage power circuits with the TDK UHV series ceramic capacitors. Designed for reliability and stability up to 50kV, these capacitors feature low ESR, low distortion, and RoHS compliance. Their molded resin and metal screw terminals ensure durability and ease of installation in medical, lithography, and industrial analyzer applications. With a temperature range from -30°C to +85°C, they are ideal for demanding environments. Secure your stock today and ensure optimal performance in your high-voltage applications with a trusted component.
Buy TDK UHV224A now and experience unmatched reliability and high-voltage performance in your industrial circuits.
Frequently Asked Questions
Where can I buy TDK Corporation UHV224A?
You can click on the BUY or RFQ button to purchase UHV224A from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part UHV224A?
You can download the UHV224A datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of UHV224A?
TDK Corporation
