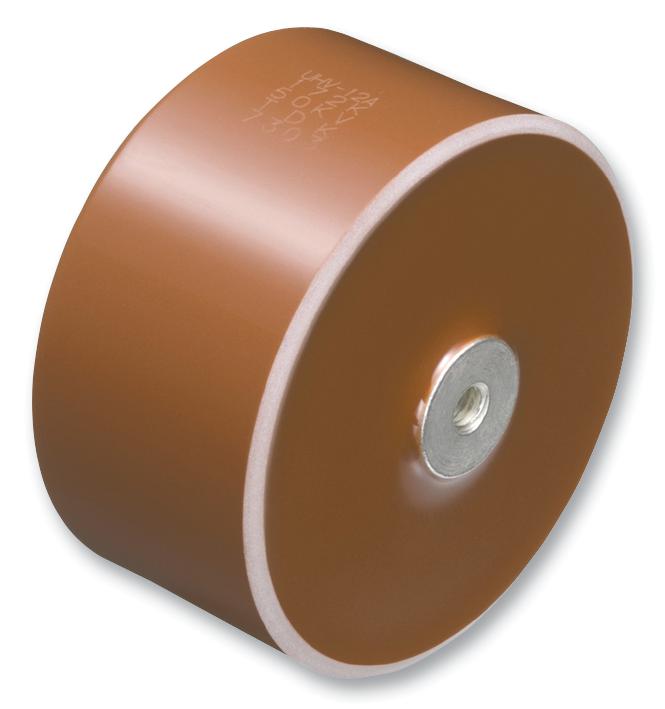

TDK Corporation UHV251A High-Voltage Ceramic Capacitor
The UHV series high-voltage ceramic capacitors are designed for demanding applications like high-voltage power supplies and lasers. Featuring metal screw terminals, they offer low ESR, high reliability with molded resin casing, and operate between -30°C to +85°C. This series includes models rated from 20kV to 50kV, with capacitances ranging from 100pF to 4,000pF, and can withstand AC voltages up to 75kVAC. Suitable for medical, industrial analyzers, and lithography, they meet RoHS compliance for environmentally conscious manufacturing.
TDK Corporation UHV251A High-Voltage Ceramic Capacitor Specifications:
- Rated Voltage: 20kV to 50kV
- Capacitance Range: 100pF to 4,000pF
- Operating Temperature: -30°C to +85°C
- Storage Temperature: -30°C to +85°C
- Dissipation Factor (tan): Max 0.2%
- Withstand Voltage: 30kV to 75kVAC depending on model
- Insulation Resistance: Min 100000 MΩ
- Material: Molded high-reliability resin
- Terminals: Metal screw type, ISO M4 to M5
- Dimensions: Variable, based on model specifications
- Compliance: RoHS Directive
Buy the TDK Series UHV High-Voltage Capacitors: UHV251A
Purchase the TDK UHV251A high-voltage ceramic capacitor online today for reliable operation in power supplies, medical devices, and industrial analyzers. With a rated voltage of 50kV, capacitance of 100pF, and RoHS compliance, this capacitor ensures high performance and environmental safety. Designed with metal screw terminals and molded resin casing, it offers ease of mounting and durability. Ideal for applications requiring high insulation resistance, low loss, and excellent temperature stability, this capacitor is your solution for demanding high-voltage electronic systems.
Buy TDK UHV251A high-voltage ceramic capacitor now and experience unmatched reliability and performance for demanding industrial and medical applications.
Frequently Asked Questions
Where can I buy TDK Corporation UHV251A?
You can click on the BUY or RFQ button to purchase UHV251A from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part UHV251A?
You can download the UHV251A datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of UHV251A?
TDK Corporation
