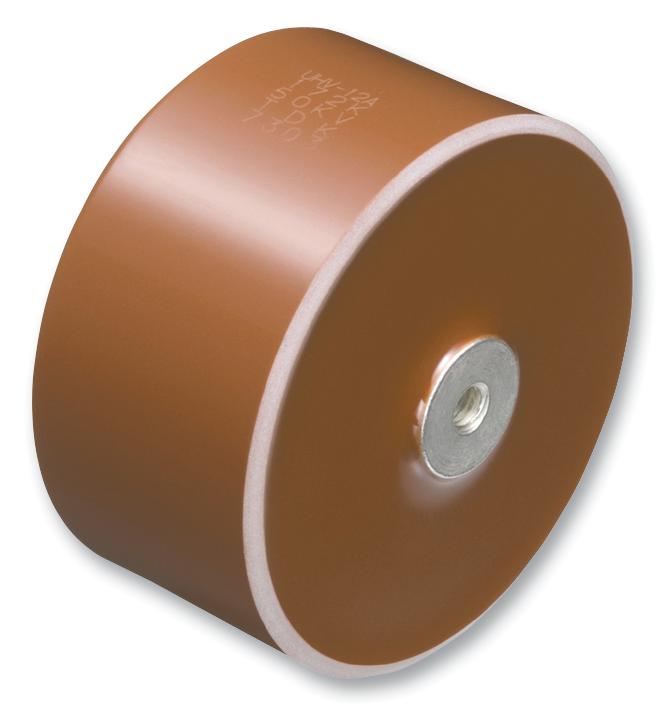

TDK Corporation UHV252A High-Voltage Ceramic Capacitor
The UHV series high-voltage ceramic capacitors are designed for demanding applications such as medical devices, lithography, and industrial analyzers. These capacitors feature a rated voltage of 20 to 50kV, low ESR, low distortion factor, and use high-reliability molded resin for enhanced durability. They have metal screw terminals for easy mounting and are RoHS compliant. Operating temperature ranges from -30°C to +85°C, with capacitance values from 100pF to 4,000pF, making them suitable for high-voltage power supplies and lasers requiring reliable performance under extreme conditions.
TDK Corporation UHV252A High-Voltage Ceramic Capacitor Specifications:
- Rated voltage: 20 to 50 kV
- Capacitance range: 100 pF to 4,000 pF
- Operating temperature: -30°C to +85°C
- Storage temperature: -30°C to +85°C
- Dimensions vary with model, typical weight 14g to 297g
- Material: High-reliability molded resin
- Terminals: Metal screw terminals (M4, M5, MS, etc.)
- Dissipation factor: ≤ 0.2%
- Insulation resistance: min. 100,000 MΩ
- Withstand voltage: Typically 1.5 times rated voltage for 1 min in oil
- RoHS compliant
- Designed for high-voltage power circuits, laser systems, medical devices
Buy the HighVoltage Series UHV: UHV252A
Purchase the High-Voltage Ceramic Capacitor from the UHV series online today. With rated voltages up to 50kV and a robust molded resin body, these capacitors are ideal for high-voltage power supplies, lasers, and industrial equipment. Easy to mount with metal screw terminals, they feature low ESR, low distortion, and high reliability, ensuring optimal performance in demanding environments. Available in various capacitance values from 100pF to 4,000pF, order now for safe, dependable operation in your high-voltage circuits.
Order your HighVoltage Series UHV capacitors today and ensure reliable high-voltage performance for your critical applications.
Frequently Asked Questions
Where can I buy TDK Corporation UHV252A?
You can click on the BUY or RFQ button to purchase UHV252A from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part UHV252A?
You can download the UHV252A datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of UHV252A?
TDK Corporation
