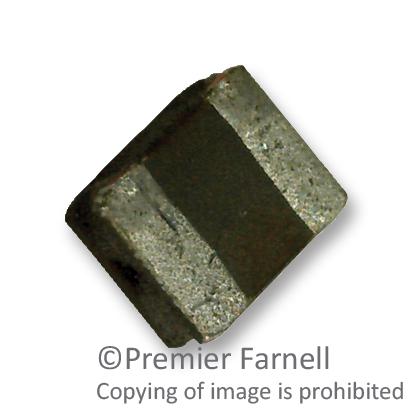

TDK Corporation VLS252010CX3R3M1 Power Ferrite Inductor
The VLS252010CX-1 series are wound ferrite inductors designed for power circuits, featuring high magnetic shield construction and compatibility with high-density mounting. These RoHS-compliant, halogen-free inductors operate within -55°C to +105°C, are suitable for applications like smartphones, tablets, HDDs, and portable power modules, offering low Dcr, high current ratings, and optimized core design. They are ideal for compact, high-efficiency power supplies, ensuring reliable performance with a small form factor and excellent thermal stability in various electronic devices.
TDK Corporation VLS252010CX3R3M1 Power Ferrite Inductor Specifications:
- Dimensions (mm): 2.5x2.0x1.0
- Inductance: 0.47 µH, 0.68 µH, 1.0 µH, 1.5 µH, 2.2 µH, 3.3 µH, 4.7 µH, 6.8 µH, 10 µH, 15 µH, 22 µH
- Tolerance: ±20%
- Maximum DC Resistance: varies with inductance, e.g., 0.038Ω for 0.47 µH
- Rated Current: up to 3.78A for 0.47 µH, correspondingly lower for larger inductance
- Operating Temperature Range: -55°C to +105°C
- Storage Temperature Range: -55°C to +105°C
- Package Quantity: 2000 pieces per reel
- RoHS and Halogen-free compliant
- Suitable for lead-free soldering
- Core Material: Ferrite
- Mounting Style: Surface mount (SMT)
- Recommended Reflow Profile: Preheat at 150°C for 60–120s, peak at 260°C for 10s
- Application: Mobile devices, SSDs, HDDs, portable electronics, compact power modules
Buy the TDK VLS252010CX-1 – Reliable Ferrite Inductor for Industrial Applications
Secure your TDK VLS252010CX-1 series ferrite inductors online today. Designed for power circuits in compact electronic devices, these RoHS-compliant inductors feature high current capacity, low Dcr, and excellent thermal stability, ensuring reliable performance in smartphones, HDDs, SSDs, and power modules. Their halogen-free composition and optimized core design make them ideal for high-density mounting and lead-free soldering, offering durability and efficiency for various industrial applications. Purchase now to ensure your projects meet high standards of quality and performance with prompt delivery and warranty support.
Order your TDK Series VLS252010CX-1 today and give your power circuits the dependable quality they deserve.
Frequently Asked Questions
Where can I buy TDK Corporation VLS252010CX3R3M1?
You can click on the BUY or RFQ button to purchase VLS252010CX3R3M1 from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part VLS252010CX3R3M1?
You can download the VLS252010CX3R3M1 datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of VLS252010CX3R3M1?
TDK Corporation
