TDK Corporation MPZ0603S330CT000 Power Line Chip Bead
The MPZ0603 series chip beads are designed as an anti-noise reduction solution for power lines, offering low direct current resistance suitable for high-current applications. These compact 0603 size components operate within a temperature range of -55°C to +125°C, making them ideal for mobile devices, PCs, household appliances, smart grids, and industrial equipment. They excel in signal line filtering, ensuring minimal insertion loss and high performance, with impedance characteristics optimized for a wide frequency range. Their robust construction ensures reliable performance in diverse electronic environments, making them essential for noise suppression and signal integrity.
TDK Corporation MPZ0603S330CT000 Power Line Chip Bead Specifications:
- Size: 0.6x0.3x0.3 mm
- Impedance at 100MHz: 22Ω, 33Ω, 47Ω (tolerance ±25%)
- DC Resistance: 0.065Ω, 0.090Ω, 0.120Ω
- Maximum Rated Current: 1.0A, 0.75A, 0.50A
- Operating Temperature Range: -55°C to +125°C
- Material: Ferrite core
- Frequency Range: up to 10,000 MHz
- Packaging: 10 pcs per reel
- Dimensions in mm: Length 0.6, Width 0.3, Height 0.3
- Preheating and Soldering: Reflow profile with peak temperatures between 250°C and 260°C, natural cooling recommended
- Storage Conditions: Store at 5°C to 40°C, humidity 10% to 75% RH, within 12 months

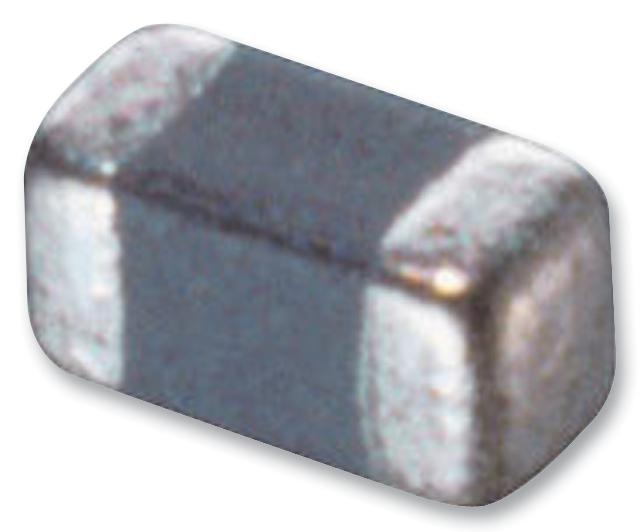

Buy the Buy EMC Components TDK Chip Beads Part Number MPZ0603S330CT000 Online
Order the TDK MPZ0603S330CT000 chip beads online for effective noise filtering in power lines and signal lines. These compact, reliable components operate efficiently at temperatures from -55°C to +125°C, providing low DCR and high impedance at high frequencies. Perfect for mobile devices, PCs, household appliances, and industrial equipment, they ensure robust performance and long-term stability. Designed with high-quality ferrite material, these beads are easy to integrate into your circuit, ensuring minimal signal interference and optimal electrical performance for demanding applications.
Get TDK MPZ0603S330CT000 today—compact high-current noise suppression beads built for reliable signal filtering and long-lasting durability.
Frequently Asked Questions
Where can I buy TDK Corporation MPZ0603S330CT000?
You can click on the BUY or RFQ button to purchase MPZ0603S330CT000 from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part MPZ0603S330CT000?
You can download the MPZ0603S330CT000 datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of MPZ0603S330CT000?
TDK Corporation
