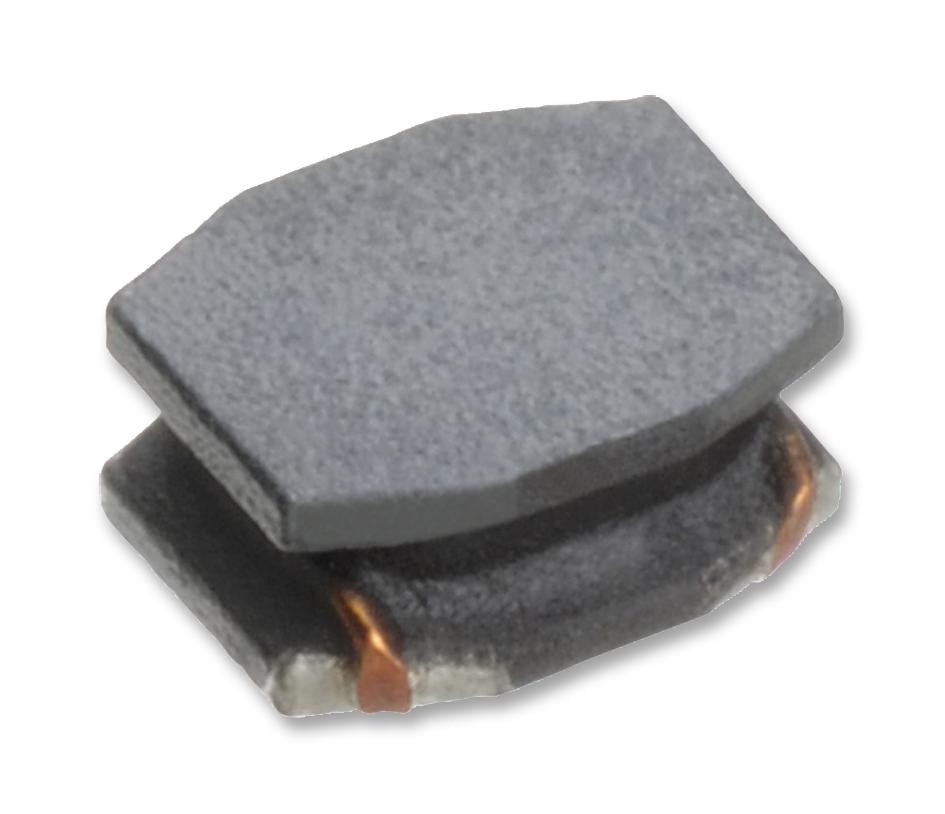

TDK Corporation VLS252010HBU150M Power Inductor
The VLS252010HBU power inductor series features magnetic shield construction with metallic magnetic material for efficient current handling. It offers high withstand voltage of 40V thanks to advanced insulating technology. These inductors are RoHS compliant, halogen-free, and compatible with lead-free solders, making them ideal for LED backlighting, LCD drivers, and OLED panels. Operating within -40°C to +105°C, they come in a compact size of 2.5x2.0x1.0 mm, with various inductance values ranging from 3.3μH to 22μH, ensuring reliable performance in modern electronic devices.
TDK Corporation VLS252010HBU150M Power Inductor Specifications:
- Size: 2.5x2.0x1.0 mm
- Inductance Range: 3.3μH to 22μH
- Tolerance: ±20%—±20%
- Rated Voltage: 40V
- Operating Temperature: -40°C to +105°C
- Storage Temperature: -40°C to +105°C
- RoHS compliant and halogen-free
- Material: Metallic magnetic core with insulating tech
- Weight: 26 mg
- Package Quantity: 2000 pieces/reel
- Lead-free and compatible with lead-free soldering
- Suitable for high current applications in power circuits
- Certifications: RoHS, halogen-free
- Application: LCD, OLED, LED backlight drivers
- Mechanical Dimensions: 2.5x2.0x1.0 mm
- Impedance: varies with inductance and frequency
Buy the TDK Series VLS Power Inductor: VLS252010HBU150M
Discover the reliable and compact power inductor designed for demanding applications such as LCD backlighting, OLED panels, and power management circuits. The VLS252010HBU series features magnetic shielding and high withstand voltage, ensuring optimal performance and safety. Its RoHS compliance and halogen-free materials make it an environmentally friendly choice. With a size of 2.5x2.0x1.0 mm, it fits easily into modern electronic devices, offering excellent current handling capability and mechanical stability. Purchase online today for quality power inductors built for durability and efficiency.
Get TDK VLS252010HBU150M today—built for precision, high current capacity, and long-lasting durability in power circuits.
Frequently Asked Questions
Where can I buy TDK Corporation VLS252010HBU150M?
You can click on the BUY or RFQ button to purchase VLS252010HBU150M from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part VLS252010HBU150M?
You can download the VLS252010HBU150M datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of VLS252010HBU150M?
TDK Corporation
