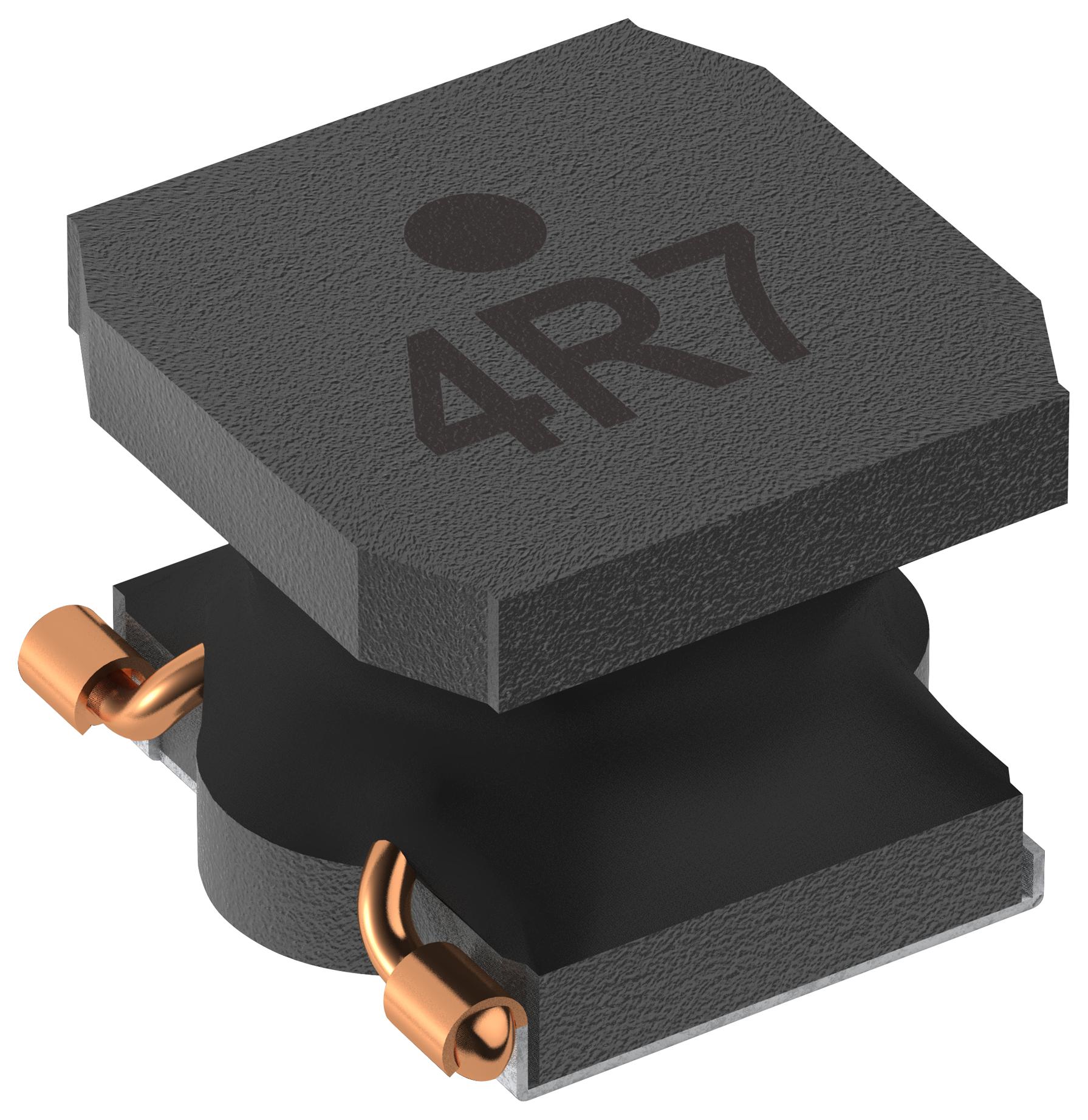

TDK Corporation VLS6045EX101MH Automotive Power Inductor
The VLS6045EX-H series is a magnetic shield wound inductor designed for automotive power circuits such as ECM, airbags, headlights, and ABS. This high-reliability inductor features a ferrite magnetic material and optimized core shape for higher current capacity and lower resistance. It complies with AEC-Q200 standards, ensuring suitability for automotive applications. Its dimensions are approximately 6.35 mm x 6.65 mm with a typical height of 4.7 mm. This inductor offers excellent electrical characteristics, including various inductance values, DC resistance, and rated currents suitable for high-density mounting in automotive electronic systems. The product is delivered in reels of 1500 pieces, with recommended reflow soldering profiles and strict storage conditions to maintain quality.
TDK Corporation VLS6045EX101MH Automotive Power Inductor Specifications:
- Dimensions: 6.35 mm x 6.65 mm x 4.7 mm
- Core Material: Ferrite
- Inductance Range: 1.0μH to 220μH with tolerances ±30% or ±20%
- Rated Current (Isat): Ranges from 3.9 A to 12.0 A depending on model
- DC Resistance: 0.012Ω to 0.47Ω
- Operating Temperature Range: -40°C to +125°C
- Soldering Profile: Preheat to 250°C, peak at 260°C for 3-5 seconds
- Package Quantity: 1500 pcs/reel
- Compliance: AEC-Q200 for automotive reliability
- Connection: Surface-mount with recommended land pattern
- Magnetic Shield: Yes to prevent interference
- Application: Automotive electronic control units, sensors, power supplies
- Measurement Equipment: Keysight Technologies (formerly Hewlett-Packard)
- Storage Conditions: 5°C to 40°C, humidity 0 to 75%
Buy the Buy Automotive Ferrite Power Inductor Part Number VLS6045EX101MH Online
Purchase the VLS6045EX-H series automotive ferrite inductor online now to guarantee high quality, reliable performance, and compliance with industry standards. Designed for automotive power circuits, this inductors offer high current capacity, low resistance, and magnetic shielding to prevent interference. Delivered in reels of 1500 pieces, they suit high-volume manufacturing needs. With recommended soldering profiles and strict storage conditions, order today and enhance your automotive electronic devices with proven reliability and high-performance components.
Order your automotive high-current ferrite inductor VLS6045EX101MH today and ensure reliable power support for your vehicle electronics systems.
Frequently Asked Questions
Where can I buy TDK Corporation VLS6045EX101MH?
You can click on the BUY or RFQ button to purchase VLS6045EX101MH from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part VLS6045EX101MH?
You can download the VLS6045EX101MH datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of VLS6045EX101MH?
TDK Corporation
