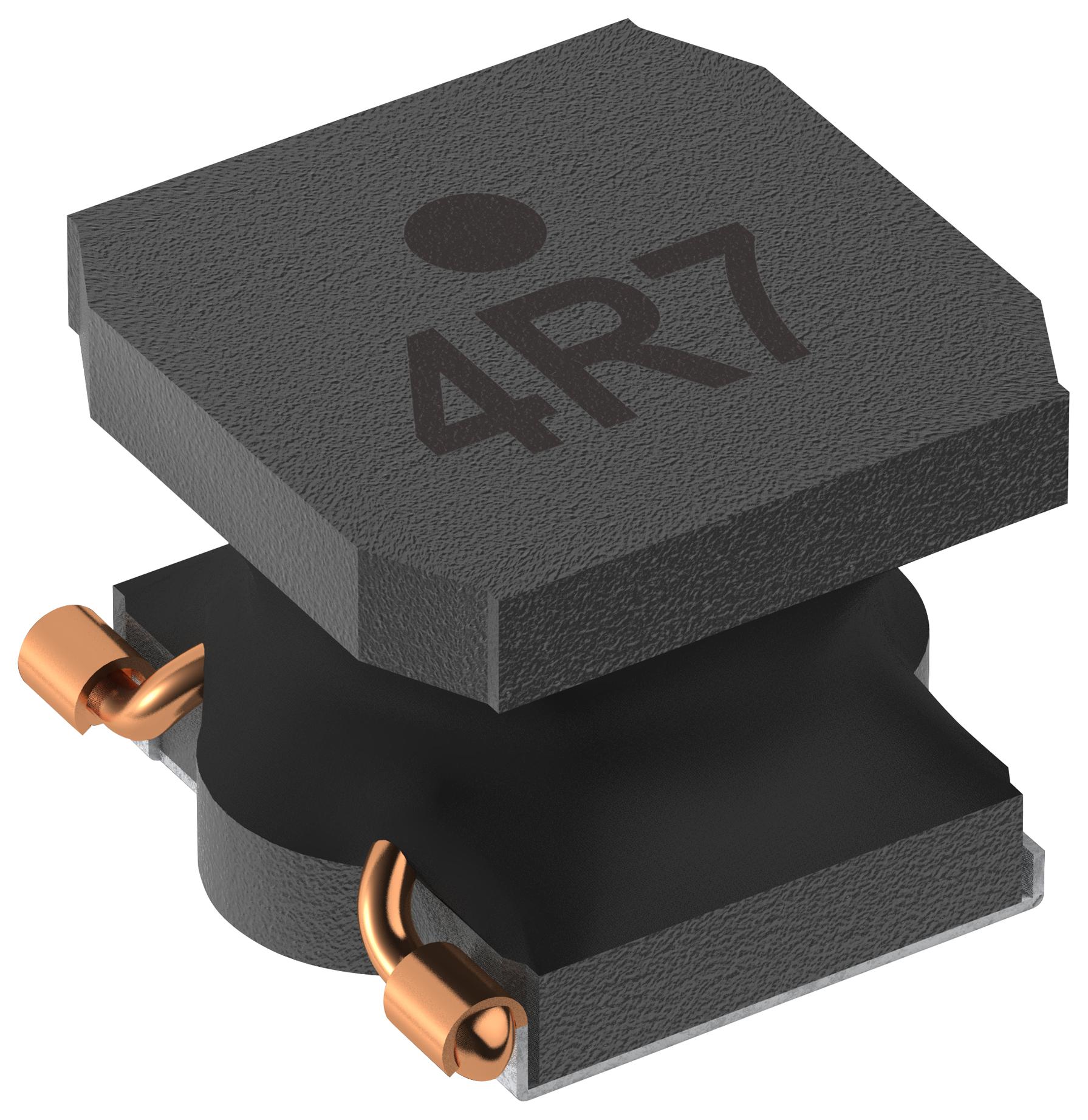

TDK Corporation VLS6045EX470MH Automotive Power Inductor
The VLS6045EX-H series inductors are wound ferrite components designed for automotive power circuits. They feature high magnetic shield construction with ferrite material, optimized for high current capacity and low Rdc. Compliant with AEC-Q200 standards, these inductors are suitable for automotive electronics like ECM, airbags, headlights, and ABS. They have a compact 6.0x6.3 mm size, with inductance options from 1.0 µH to 470 µH, and are rated for operating temperatures from -40°C to 125°C. The series supports high-frequency applications with excellent inductance stability under DC bias and temperature variations.
TDK Corporation VLS6045EX470MH Automotive Power Inductor Specifications:
- Series Name: VLS6045EX-H
- Package Dimensions: 6.0 x 6.3 mm, height approximately 4.7 mm
- Inductance Ranges: 1.0 µH to 470 µH, tolerances ±30% or ±20%
- Current Ratings: Up to 82 A for 15 µH, 58 A for 47 µH, 7.5 A for 22 µH, 1.0 A for 1 µH
- DC Resistance: Ranges from 0.012 Ω to 0.47 Ω depending on inductance
- Rated Current: Defined by Isat and temperature rise, operating temperature -40°C to 125°C
- Application: Automotive electronics including ECM, airbags, headlights, electronic power steering, ABS
- Compliance: AEC-Q200 standard
- Measurement Equipment: Keysight Technologies, Inc., model 42948, 42944, 4284A series
- Storage Temperature Range: -40°C to 125°C
- Operating Temperature Range: -40°C to 125°C
- Package Quantity: 1500 pcs/reel
- Packaging: Reel with recommended reflow profile for soldering
- Dimensions: Length 6.35 mm, Width 6.65 mm, Height 4.7 mm
- Magnetic Shield Type: Wound ferrite for high-frequency stability
- Frequency Characteristics: Measured up to 10 MHz with stability
- Inductance vs. DC Bias: Maintains stable inductance under current load
Buy the Generic 6045EX-H – Reliable Automotive Power Inductor for Industrial Applications
Enhance your automotive electronics with the VLS6045EX-H series inductors. Designed for high-current power circuits, these wound ferrite inductors feature strong magnetic shielding, low resistance, and reliable performance under demanding automotive conditions. Suitable for ECM, airbags, headlights, and ABS, the series meets strict AEC-Q200 standards. Their compact dimensions and high frequency stability make them ideal for space-constrained applications. Purchase online now for fast delivery and guaranteed quality, ensuring your automotive projects achieve maximum efficiency and durability.
Order your Generic SeriesVLS6045EX-H automotive power inductor today and ensure your automotive electronics operate with dependable magnetic shielding and high current capacity.
Frequently Asked Questions
Where can I buy TDK Corporation VLS6045EX470MH?
You can click on the BUY or RFQ button to purchase VLS6045EX470MH from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part VLS6045EX470MH?
You can download the VLS6045EX470MH datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of VLS6045EX470MH?
TDK Corporation
