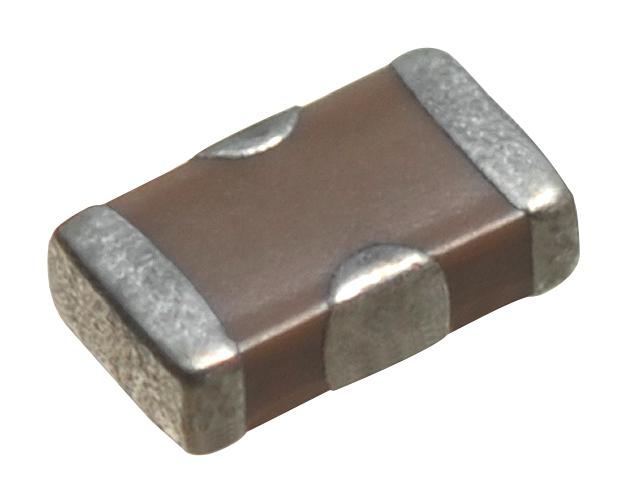

TDK Corporation YFF21AC1H470MT0Y0N Automotive Feed-Through Filter
The YFF21AC series feed-through filters are compact, high-performance EMC components designed for automotive applications. They feature a feed-through structure that minimizes electrical noise, reduces ESL, and provides excellent attenuation across wide bandwidths. Suitable for noise suppression in power lines and decoupling in automotive systems like ECUs and ADAS, these filters meet automotive safety standards and are compliant with AEC-Q200. Their robust design ensures reliability in harsh vehicle environments, contributing to electromagnetic compatibility and overall system stability.
TDK Corporation YFF21AC1H470MT0Y0N Automotive Feed-Through Filter Specifications:
- Series: YFF21AC
- Dimensions (L x W): 2.00 x 1.25 mm
- Terminal Width: 0.30 mm
- Rated Voltage: 25 V DC
- Nominal Capacitance: 470,000 pF (470 nF)
- Cutoff Frequency: 0.4 MHz
- Insertion Loss: 30 dB at 0.4 MHz
- Operating Temperature Range: -55°C to +125°C
- Storage Temperature Range: -55°C to +125°C
- Compliance: AEC-Q200, RoHS, REACH SVHC-Free
- Construction: Feed-through structure with GND terminals, short distance to ground, reduces ESL
- Application: Automotive EMC, decoupling, noise filtering in power lines, ECUs, ADAS
- Material: Metal oxide capacitor, durable for automotive use
Buy the Buy EMC Components Feed-Through Filter Part Number YFF21AC1H470MT0Y0N Online
Enhance your automotive electromagnetic compatibility with the YFF21AC series feed-through filters. Designed for noise suppression and decoupling, these filters reduce electrical noise, lower ESL, and provide wide bandwidth attenuation. Ideal for ECUs, ADAS, and power line applications, their compact and durable construction ensures reliable performance in harsh environments. Fully compliant with automotive safety standards like AEC-Q200, they ensure system stability and electromagnetic compatibility, making them essential components for automotive electronic systems needing high-quality noise filtering.
Buy EMC Components YFF21AC1H470MT0Y0N now and enhance your automotive noise filtering with robust, low ESL feed-through filters for reliable operation.
Frequently Asked Questions
Where can I buy TDK Corporation YFF21AC1H470MT0Y0N?
You can click on the BUY or RFQ button to purchase YFF21AC1H470MT0Y0N from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part YFF21AC1H470MT0Y0N?
You can download the YFF21AC1H470MT0Y0N datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of YFF21AC1H470MT0Y0N?
TDK Corporation
