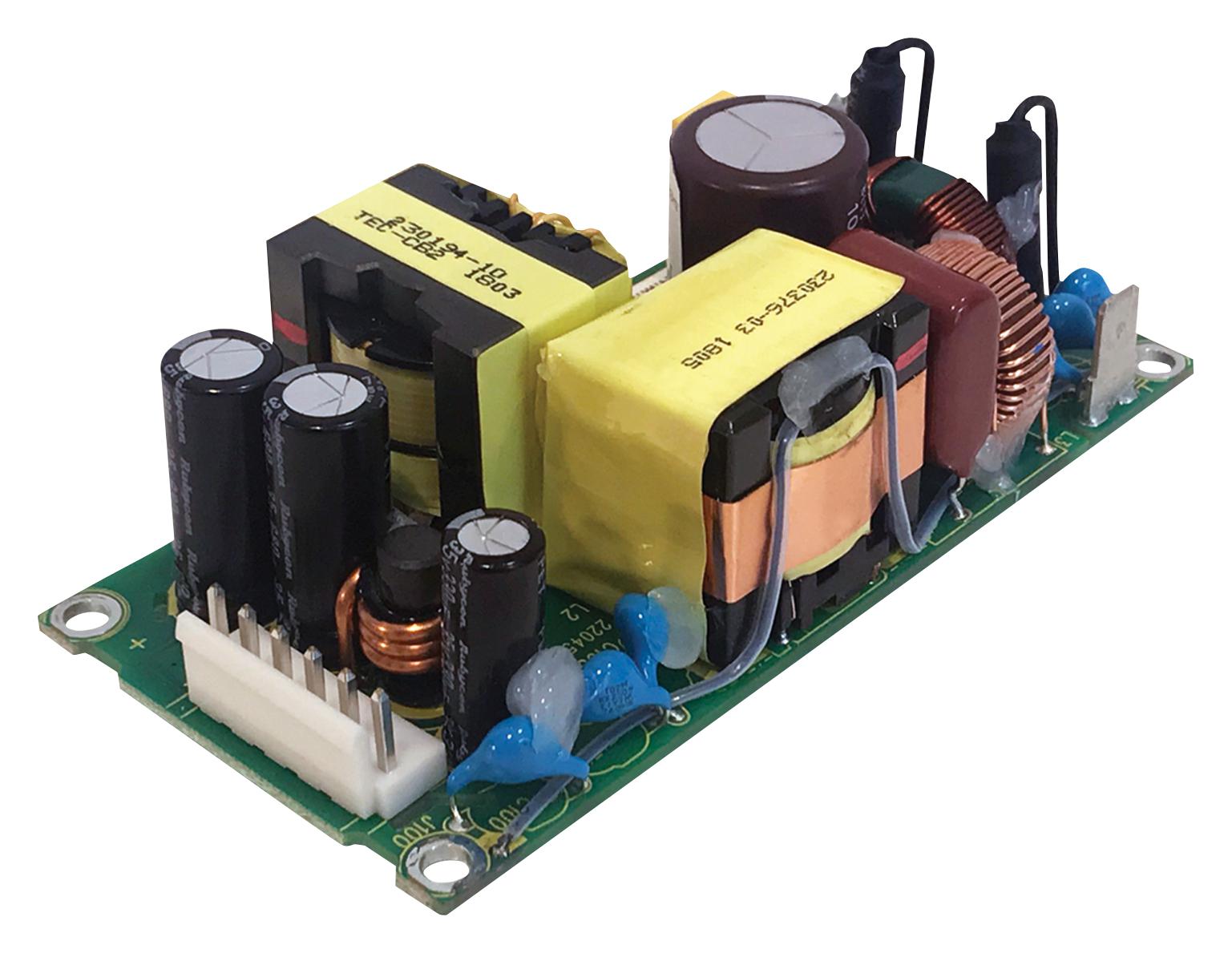

TDK-LAMBDA CUS100ME18 Industrial Power Supply
The 100W AC-DC power supply from the TDK-Lambda CUS100ME series provides reliable power conversion for industrial, medical, and broadcast applications. It features convection, conduction, or forced air cooling options, with an operating temperature range from -20°C to +85°C. The device offers high efficiency up to 94%, low leakage current, and comprehensive safety certifications including IEC/EN/UL standards. It is designed for easy integration with multiple input voltage options (85-264VAC) and various output voltages such as 12V, 15V, 18V, 24V, 28V, 36V, and 48V. Its modular design ensures durability, safety compliance, and reduced electromagnetic interference, making it suitable for demanding environments.
TDK-LAMBDA CUS100ME18 Industrial Power Supply Specifications:
- Input Voltage Range: 85 - 264VAC, 47 - 440Hz, derates linearly to 90% load from 90 to 85VAC
- Output Power: 100W with various voltages (12V, 15V, 18V, 24V, 28V, 36V, 48V)
- Efficiency: Up to 94%, active average efficiency >87%
- Ambient Temperature: -20°C to +85°C, derating above 50°C
- Leakage Current: <250uA at 230VAC 63Hz
- Hold Up Time: >24ms at 100W load
- Safety Certifications: IEC/EN/UL 60950-1, 60601-1, IEC61010-1, EN60335-1
- Isolation: Input to ground 1.5kVAC, Output to ground 1.5kVAC, Input to output 4kVAC
- Dimensions: 2 x 4 x 1.24 inches (50.8 x 101.6 x 31.5 mm), open frame design
- Protection: Short circuit, overvoltage, automatic recovery, latching protection
- Compatibility: Class I and Class II installation, EMI compliance with EN55011/EN55032-B
Buy the TDK-Lambda Series CUS100ME Power Supply: 100W AC-DC Converters
Purchase the TDK-Lambda Series CUS100ME 100W power supply online today to upgrade your industrial, medical, or broadcast systems. Designed for high efficiency and durability, this power supply features a wide input voltage range of 85-264VAC, making it suitable for global applications. It offers multiple output voltages including 12V, 15V, 18V, 24V, 28V, 36V, and 48V, with excellent electromagnetic compatibility and safety certifications. Its compact open frame design ensures easy integration into various equipment, providing reliable power and protection in demanding environments.
Order your TDK-Lambda Series CUS100ME 100W power supply today and ensure your projects benefit from reliable, efficient power conversion.
Frequently Asked Questions
Where can I buy TDK-LAMBDA CUS100ME18?
You can click on the BUY or RFQ button to purchase CUS100ME18 from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part CUS100ME18?
You can download the CUS100ME18 datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of CUS100ME18?
TDK-LAMBDA
