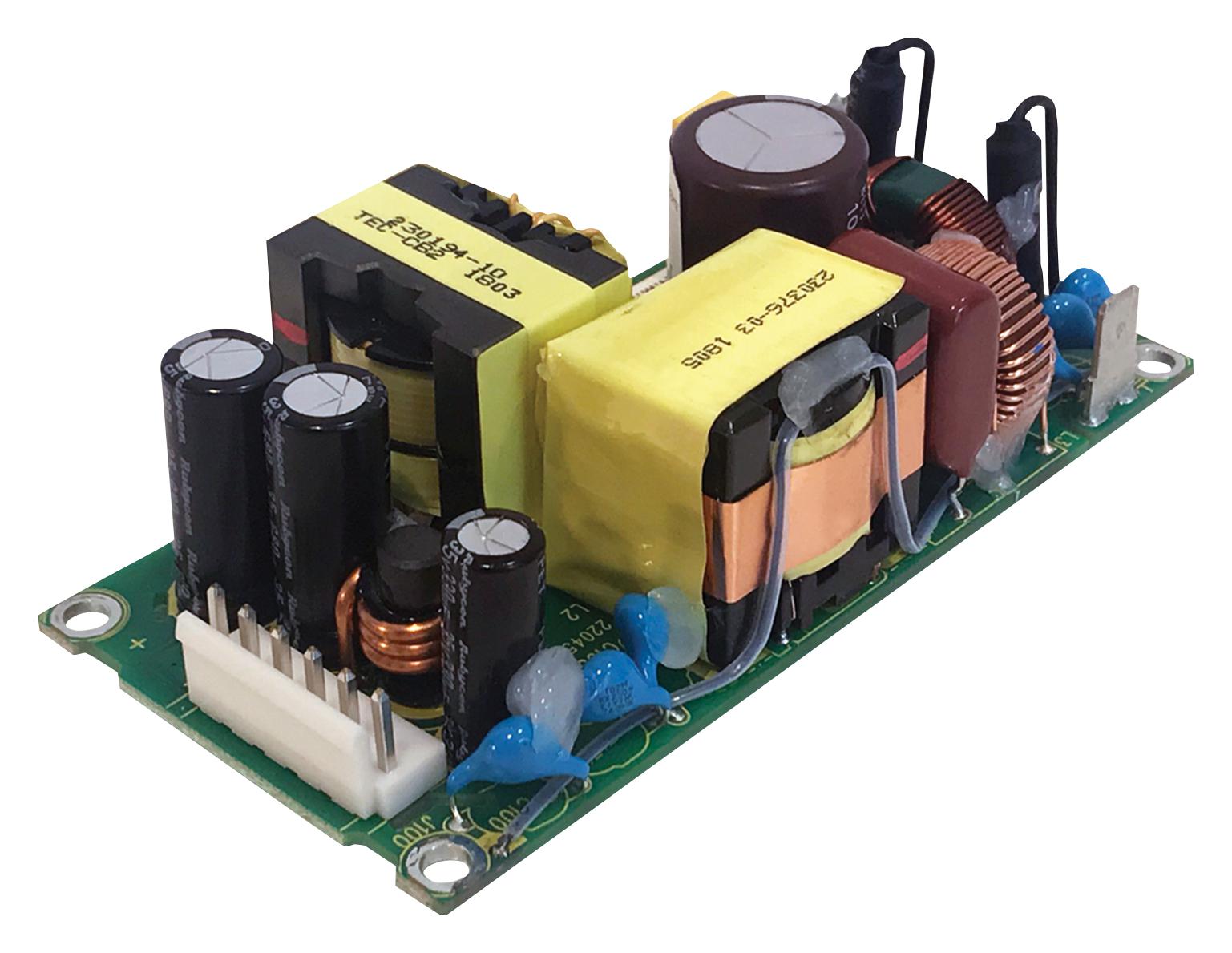

TDK-LAMBDA CUS100ME48 Medical Power Supply
The CUS100ME series is a high-performance, 100W open-frame power supply designed for medical and industrial applications. It features convection, conduction, and forced air cooling options suitable for high ambient temperatures up to 85°C. The power supply provides excellent efficiency up to 94%, low ripple and noise under 1%, and complies with IEC/EN/UL safety and EMI standards. Its compact size, wide input voltage range of 85-264VAC, and robust design make it ideal for demanding environments, with certifications for medical and industrial use and a 5-year warranty.
TDK-LAMBDA CUS100ME48 Medical Power Supply Specifications:
- Input Voltage Range: 85 - 264VAC (47 - 440Hz), derate linearly to 90% load from 90 to 85VAC
- Output Power: 100W
- Efficiency: Up to 94%
- Ripple & Noise: <1% (pk-pk)
- Operating Temperature: -20°C to +85°C (with derating above 50°C)
- Safety Certifications: IEC/EN/UL60950-1, 60601-1, IEC61010-1, EN60601-1-2
- Isolation Voltage: Input to Ground 1.5kVAC, Output to Ground 1.5kVAC
- Leakage Current: <250uA at 230VAC
- Hold-up Time: >24ms
- Humidity: 5-95% RH (non-condensing)
- Size: 50.8 x 101.6 x 31.5 mm (Open frame)
- Cooling: Convection, conduction, forced air options available
- Weight: 180g (Open frame)
- Additional features: Short circuit, overvoltage protections; Compliance with EMI standards
Buy the TDK Lambda Series CUS100ME Power Supply: CUS100ME48
Order the TDK Lambda CUS100ME48 power supply online today and experience top-tier reliability, high efficiency up to 94%, and excellent safety features. Perfect for medical and industrial environments, it offers multiple cooling options, a wide input voltage range, and a robust design capable of operating in high ambient temperatures up to 85°C. With a compact form factor and a 5-year warranty, this power supply ensures your applications have uninterrupted power with proven safety and EMI compliance. Buy now for dependable performance!
Get TDK Lambda CUS100ME48 today—built for medical and industrial reliability with high efficiency and thermal tolerance.
Frequently Asked Questions
Where can I buy TDK-LAMBDA CUS100ME48?
You can click on the BUY or RFQ button to purchase CUS100ME48 from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part CUS100ME48?
You can download the CUS100ME48 datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of CUS100ME48?
TDK-LAMBDA
