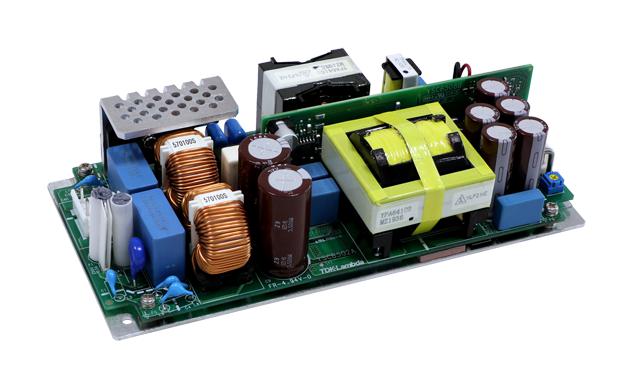

TDK-LAMBDA CUS350MP100048 Medical Power Supply
The CUS350MP power supply offers 350W of continuous power with peak capability of 1,000W, suitable for applications requiring low noise operation through convection cooling. It also provides options with forced air cooling for up to 500W continuous and 1,000W peak power. Certified for medical safety standards (IEC60601-1 3rd edition, IEC62368-1, IEC62477-1) and compliant with EN60601-1-2:2015 immunity requirements, this power supply achieves efficiencies up to 94%, reducing waste heat and ensuring reliable operation in a compact 88 x 183 x 44 mm package. It features a 5V standby output at 0.3A, remote on/off control, and high peak power suited for printers and DC motor-driven equipment. The series is also certified for medical use (two MoPP), with Class B EMI emissions, and includes a five-year warranty. Due to high demand, lead times may extend, and delivery dates can fluctuate. This product is not eligible for discounts.
TDK-LAMBDA CUS350MP100048 Medical Power Supply Specifications:
- Input Voltage Range: 85-265Vac / 120-370Vdc
- Input Frequency: 47-63Hz
- Input Current (115/230Vac): Convection cooled 3.6/1.7A, Forced air 4.9/1.5A
- Inrush Current at 100/200Vac: 15/30A, second inrush 30/30A
- Leakage Current: <300uA at 60Hz
- Power Factor: 0.98/0.93
- Hold Up Time: Convection cooled 20ms, Forced air 15ms
- Efficiency: Up to 94% (model dependent)
- EMI Compliance: EN55011, EN55032-B, FCC Class B, VCCI-B
- Isolation Voltage: Input to Ground 2kV, Input to Output 4kV, Output to Ground 1.5kV for 1 min
- Ambient Operating Temperature: -30°C to +70°C (derating above 50°C)
- Size: 88 x 183 x 44 mm (3.46 x 7.2 x 1.73 inches)
- Weight: Approx. 770g
- Protection: Overcurrent, Overvoltage, Overtemperature, Remote Sense, Remote On/Off
Buy the TDK Series CUS Power Supply: 350W Continuous 1000W Peak Model
Purchase the TDK CUS350MP power supply online today to benefit from high efficiency, certified safety standards, and a compact design. Perfect for medical devices, industrial equipment, printers, and applications with demanding power needs. Equipped with a 350W continuous output and 1,000W peak capacity, this power supply ensures reliable operation with low noise convection cooling or optional forced air cooling. Features include a 5V standby output, remote on/off, high EMI immunity, and a five-year warranty, providing peace of mind and low ownership costs. Order now for fast delivery and dependable performance.
Buy TDK CUS350MP power supply now and experience unmatched reliability and performance in medical and industrial applications.
Frequently Asked Questions
Where can I buy TDK-LAMBDA CUS350MP100048?
You can click on the BUY or RFQ button to purchase CUS350MP100048 from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part CUS350MP100048?
You can download the CUS350MP100048 datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of CUS350MP100048?
TDK-LAMBDA
