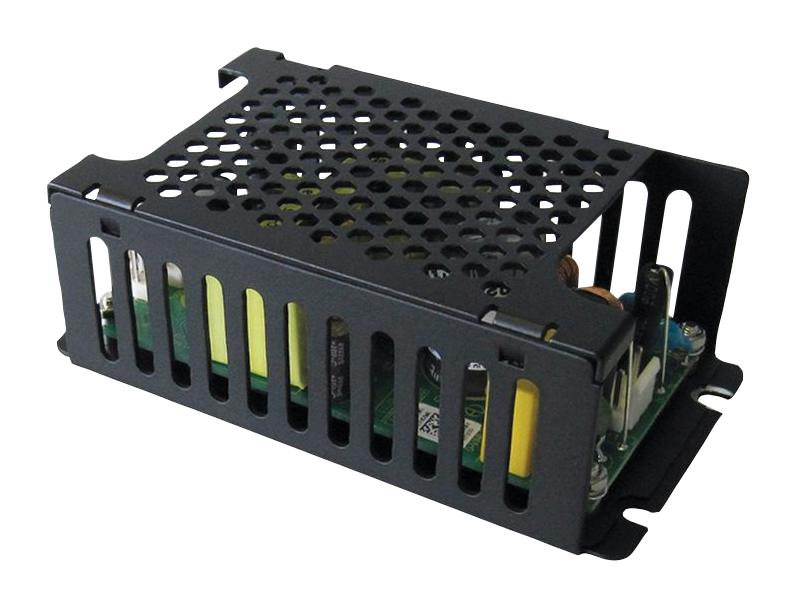

TDK-LAMBDA CUS100ME48A medical power supply
The CUS100ME series features highly efficient 100W AC-DC power supplies suitable for medical and industrial applications. Designed for high ambient temperatures with convection, conduction, or forced air cooling options, these supplies offer up to 94% efficiency, low ripple & noise (<1%), and comprehensive safety certifications, including IEC/EN/UL60950-1 and 60601-1. They provide rugged construction with isolation resistance over 100MΩ, Vibration and Shock resistance, and support a wide temperature range from -20°C to +85°C. Ideal for B & BF rated medical equipment and industrial systems requiring reliable power in demanding environments.
TDK-LAMBDA CUS100ME48A medical power supply Specifications:
- Input Voltage range: 85 - 264VAC (47 - 440Hz), derates linearly to 90% load from 90 to 85VAC
- Input Current: 1.4A at 100VAC, Inrush <65A at cold start 230VAC
- Hold Up Time: >24ms, Leakage Current: <250uA at 230VAC
- Ripple & Noise: <1%, Load Regulation: 1%, Line Regulation: 0.5%, efficiency: up to 94%
- Operating Temperature: -20°C to +85°C, Storage: 40 to +85°C, Altitude: 5000m
- Isolation Voltage: Input-Ground 1.5kVAC, Output-Ground 1.5kVAC; Output- Ground 1.5kVAC, Resistance >100MΩ
- Certifications: IEC/EN/UL60950-1, 60601-1, EMI Class B, EN60601-1-2 immunity compliant
- Cooling: convection, conduction, or forced air; Weight: up to 255g; Size: 50.8 x 101.6 x 31.5 mm
Buy the Buy TDK Lambda CUS100ME Series Part Number 48A Online
Purchase the TDK Lambda CUS100ME48A power supply online today and enjoy the benefits of a highly reliable, medical-grade AC-DC solution. Designed for demanding industrial and medical environments, this 100W power supply delivers up to 94% efficiency, low ripple & noise, and robust safety features including IEC/EN/UL certifications. Its versatile cooling options and wide temperature range make it suitable for high ambient conditions. Order now to ensure seamless powering of your critical equipment with proven performance and compliance.
Buy TDK Lambda CUS100ME48A now and experience unmatched reliability, high efficiency, and medical-grade safety for your critical applications.
Frequently Asked Questions
Where can I buy TDK-LAMBDA CUS100ME48A?
You can click on the BUY or RFQ button to purchase CUS100ME48A from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part CUS100ME48A?
You can download the CUS100ME48A datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of CUS100ME48A?
TDK-LAMBDA
