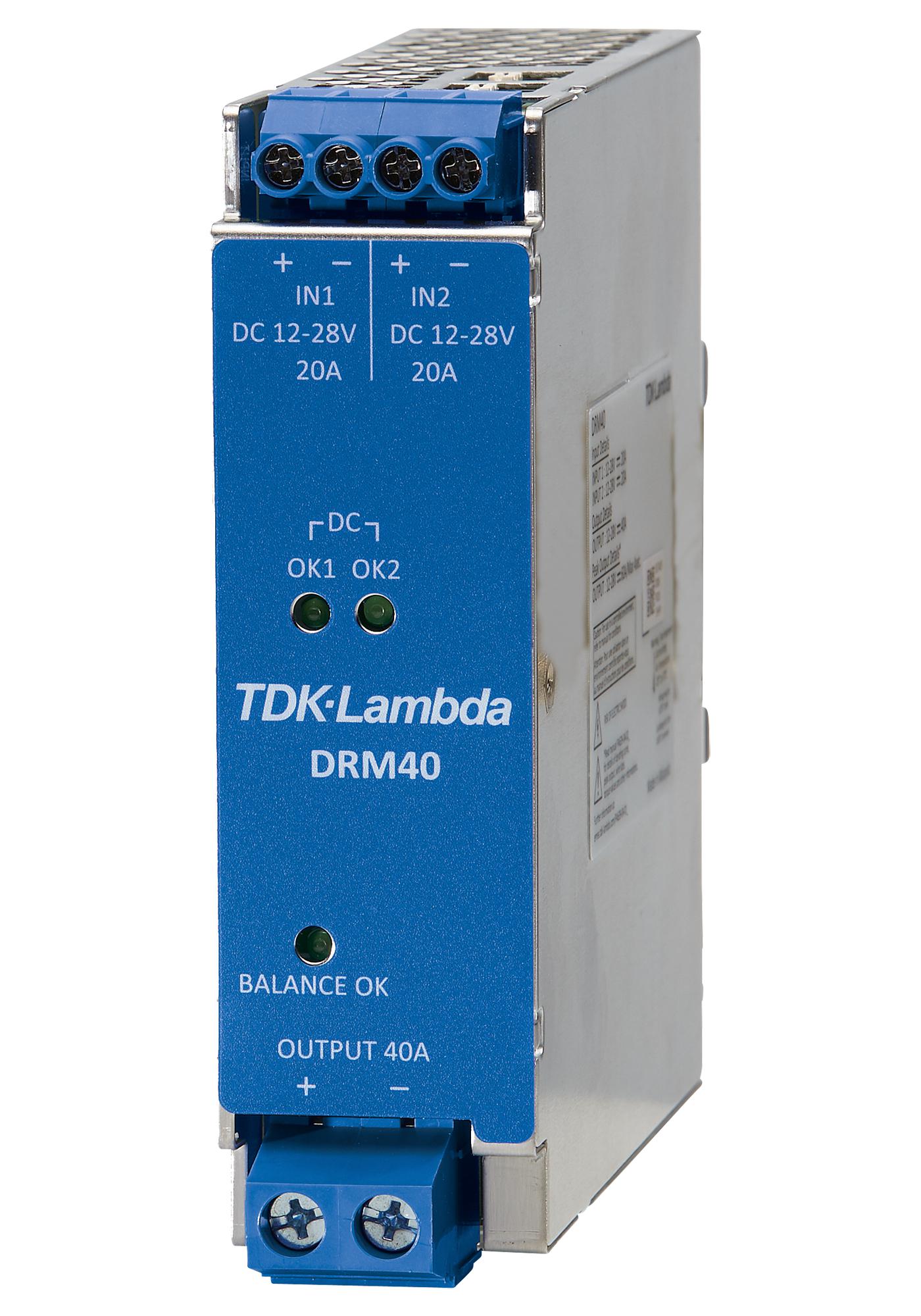

TDK-LAMBDA DRM40 Power Redundancy Module
The TDK-Lambda DRM40 Series is a compact 20-40A DIN Rail redundancy module designed for industrial power applications. It features low 200mV voltage drop, isolated alarm signals, and current balance indicators. Its robust construction supports an input voltage range of 10-30VDC, with maximum output current of 40A and peak of 60A for short durations. The module operates within -40 to +70°C, is convection cooled, and offers reliability certified by IEC/EN/UL standards. Ideal for ensuring power redundancy in demanding industrial environments, it guarantees stable power distribution and monitoring.
TDK-LAMBDA DRM40 Power Redundancy Module Specifications:
- Input Voltage Range: 10-30VDC
- Number of Inputs: Two
- Maximum Input Current: 2x 20A, peak 60A
- Peak Input Current: 2 x 30A for 4s
- Maximum Output Current: 40A
- Peak Output Current: 60A for 4s
- Internal Power Loss: 8W at 40A
- Input to Output Voltage Drop: 0.2V at 40A
- Maximum Reverse Voltage: 40VDC
- Operating Temperature: -40 to +70°C
- Storage Temperature: -40 to +85°C
- Humidity Range: 5-95% RH non-condensing
- Cooling Method: Convection
- Size: 35 x 125 x 124mm
- Weight: 330g
- Safety Compliance: IEC/EN/UL60950-1, UL62368-1, UL508, CE
- Isolation Resistance: >100MΩ at 25°C
- Withstand Voltage: 707VDC for 1 minute
- Vibration and Shock: Tested for 10-55Hz sweep, 19.6m/s² (2G), <196m/s² shock
Buy the TDK-Lambda Series DRM40 Power Redundancy Module: DRM40
Enhance your industrial power systems with the TDK-Lambda DRM40 Series redundancy module. Engineered for reliability, it features a compact DIN rail design, low voltage drop of 200mV, and isolated alarm signals to ensure stable power distribution. Capable of delivering 40A continuous current with peak capability of 60A, it operates efficiently across -40 to +70°C and is convection cooled for tough environments. Easy to install, monitor, and maintain, this module is ideal for critical industrial applications seeking dependable power redundancy and system stability.
Buy TDK-Lambda DRM40 now and experience unmatched reliability and performance in industrial power applications.
