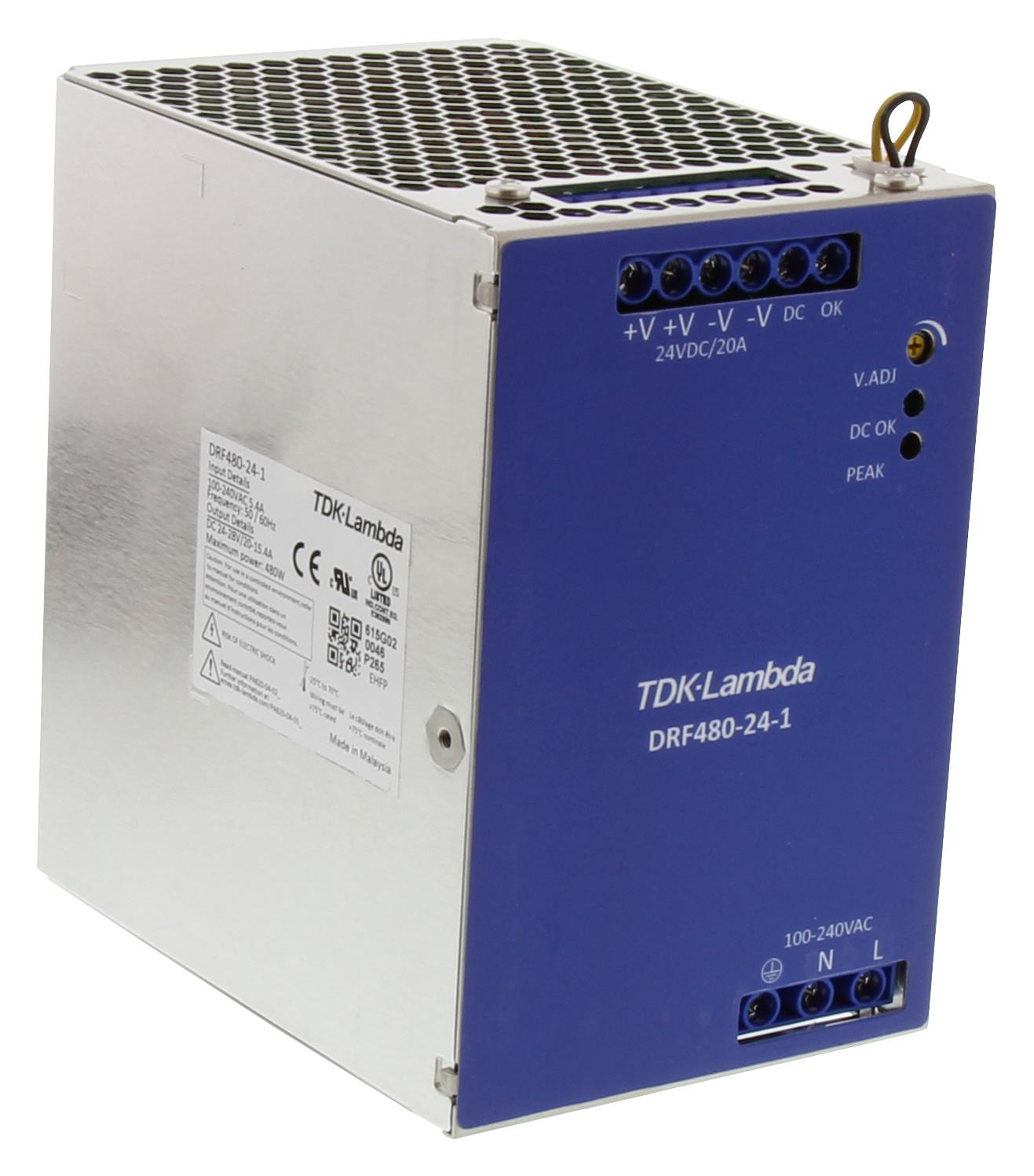

TDK-LAMBDA DRF480241 Industrial Power Supply
The DRF480241 is a 24V, 480W DIN-rail mount power supply featuring an ErP-compliant design, compact size, high efficiency, low standby power consumption, remote voltage adjustment, and on/off control. It offers programmable output, 150% peak power capability for 4 seconds, over 20ms hold-up time at 230VAC, and operates within a temperature range of -25°C to 70°C. Suitable for industrial and test & measurement applications. Note: Delivery may be delayed due to high demand, and the product is exempt from discounts.
TDK-LAMBDA DRF480241 Industrial Power Supply Specifications:
- Input Voltage Range: 85 - 264VAC
- Input Frequency: 4T - 63Hz
- Power Output: 24V, 20A, 480W
- Peak Power Capability: 150% for 4 seconds
- Efficiency: 92.5 / 94%
- Standby Power Draw: <0.75W
- Hold-up Time: >20ms at 230VAC
- Operating Temperature: -25°C to +70°C (linearly derates above 60°C to 75% load)
- Vibration: 10-55Hz, 19.6m/s² (2G), 1 hour per axis
- Shock: <196m/s²
- Isolation Voltage: 3kVAC (input to output), 1.5kVAC (input to GND), 500VAC (output to GND)
- Dimensions: 3.23 x 4.86 x 4.53 inches (82 x 123.4 x 115 mm)
- Weight: 1300g
- Certifications: UL508, IEC/UL/EN60950-1, ATEX, IEC Ex, CE, GL
- Material: Metal casing
- Remote On/Off: Yes
- Remote Voltage Adjustment: Yes
- Environmental: Storage -40°C to +85°C, Operating humidity 5-95% RH
- Compliance: EN55022-B, EN61000-4 series, Withstands voltage up to 3kVAC
Buy the TDK Series DRF480 Power Supply: 24V 480W DIN Rail Mount
Purchase the TDK Lambda DRF480241 online today to enjoy a high-efficiency, reliable power supply ideal for industrial automation, test systems, and control applications. This 480W DIN rail mount device features a compact design, remote voltage adjustment, and peak power burst capability for demanding loads. Its comprehensive safety certifications, low standby power consumption, and wide operating temperature range ensure robust performance and compliance. Buy now to secure fast delivery and elevate your industrial power solutions with this advanced, proven power supply.
Buy TDK Lambda DRF480241 now and experience unmatched reliability and performance with high efficiency, peak power capability, and remote control features.
