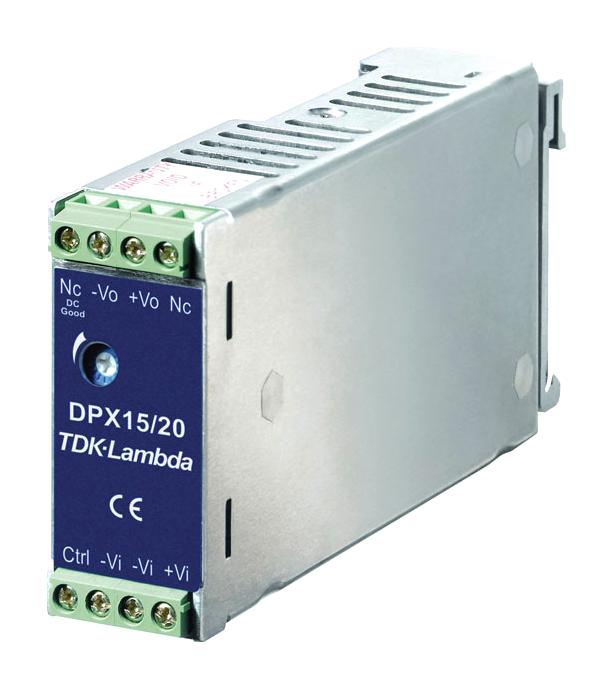

TDK-LAMBDA DPX1524WS05 Industrial Power Converter
The DPX15W Series are reliable 15W DIN rail mount DC-DC converters suitable for industrial automation, control systems, and communication applications. They feature single and dual output options with wide input voltage ranges of 9.5-36VDC and 18-75VDC. Designed for ease of installation, these converters have protections against input fuse blowout, reverse polarity, in-rush current, overload, and short circuits. An output DC-OK indicator and high efficiency ensure stable power delivery. Certified for safety and CE approval, they support operating temperatures up to 85°C without derating, making them ideal for demanding environments.
TDK-LAMBDA DPX1524WS05 Industrial Power Converter Specifications:
- Rated input voltage range: 9.5-36VDC or 18-75VDC
- Switching frequency: 400kHz, typical
- Maximum input current: 24V input 6A fuse, 48V input 4A fuse
- Output power: 15W maximum
- Output voltage options: 3.3V, 5V, 12V, 15V, and others depending on model
- Ripple and noise: 50mVp-p to 75mVp-p depending on model
- Efficiency: up to 86%
- Operating temperature: -40°C to 85°C, with derating above 85°C
- Isolation voltage: 1600VDC
- Dimensions: 57.6mm x 24.5mm x 125mm
- Connectors: Screw terminals for easy wiring
- Protection: Input fuse, reverse polarity, overload, short circuit, overvoltage
- Safety: CE approved, EN55022 Class B EMI compliance
- Size: Compact DIN rail mount, convection cooled, with front panel LED indicating output DC good
- Warranty: 2 years
Buy the Buy TDK-Lambda DPX15W Series Part Number DPX1524WS05 Online
Purchase the TDK-Lambda DPX15W Series power converter online today. This reliable industrial-grade DC-DC converter offers wide input ranges, multiple output options, and comprehensive protections. Its high efficiency and compact DIN rail mount design make it ideal for automation, communication, and control systems. With a 2-year warranty, user-friendly screw terminal connectivity, and CE safety approval, it ensures stable power delivery in demanding environments. Simplify your system integration with this robust, easy-to-install power solution, available now for immediate online purchase.
Get TDK-Lambda DPX15W Series with wide input and high efficiency today—designed for reliable industrial control and automation power needs.
