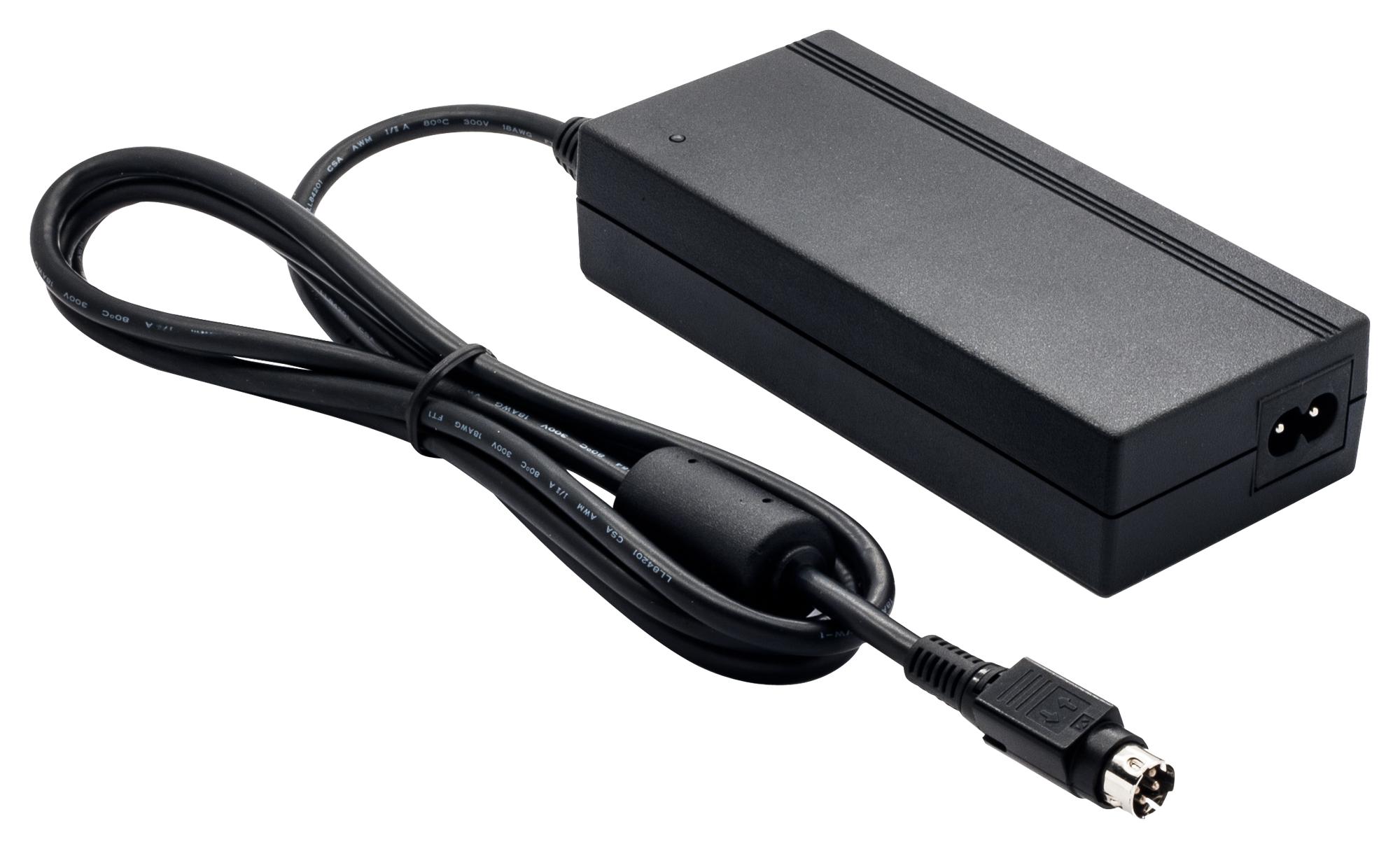

TDK-LAMBDA DTM110PW480C8 Medical Power Supply
The DTM110PW480C8 is a 110W external power supply designed for medical and industrial applications, featuring high efficiency, low off-load power consumption, and compliance with IEC60601-1 standards. It operates from 90 to 264VAC input, with a compact size of 63 x 140 x 33mm, and offers a protected, IP41-rated enclosure suitable for medical and ITE environments. The power supply provides a stable output of 48V at 2.29A, with high efficiency over 89%, and includes safety, EMC, and short circuit protections, making it reliable for demanding industrial and healthcare devices.
TDK-LAMBDA DTM110PW480C8 Medical Power Supply Specifications:
- Input Voltage: 90 - 264VAC, 47 - 63Hz
- Output Voltage: 48V
- Maximum Output Current: 2.29A
- Maximum Power: 110W
- Efficiency: >89%
- Dimensions: 63 x 140 x 33mm
- Weight: 780g
- Protection: Overload, Short Circuit, Overvoltage, and IP41 rating
- Operating Temperature: -20°C to +60°C, derates above 40°C
- Storage Temperature: -20°C to +85°C
- Compliance: IEC60601-1, IEC60601-1-11, UL, CSA, CE
- Ripple & Noise: 150mV (pk-pk)
- Safety and EMC: IEC60601-1-2 Ed4 compliant, EN55011, FCC Class B
- Cooling: Convection
- Input Connector: IEC 320-C8
- Output Connector: Kycon KPPX-4P or equivalent
Buy the TDK-Lambda DTM110PW480C8 – Reliable Power Supply for Industrial Applications
Purchase the TDK-Lambda DTM110PW480C8 power supply online today for a dependable 110W solution with 48V output. Ideal for medical and industrial devices requiring high efficiency, safety, and compliance with international standards. This compact unit features a rugged IP41 enclosure, a low power off-load draw, and comprehensive protections, ensuring safe operation in demanding environments. Enjoy fast shipping, easy ordering, and trusted performance to keep your medical and industrial equipment running smoothly and reliably around the clock.
Buy TDK-Lambda DTM110PW480C8 now and experience unmatched reliability and performance for demanding industrial and medical equipment.
Frequently Asked Questions
Where can I buy TDK-LAMBDA DTM110PW480C8?
You can click on the BUY or RFQ button to purchase DTM110PW480C8 from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part DTM110PW480C8?
You can download the DTM110PW480C8 datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of DTM110PW480C8?
TDK-LAMBDA
