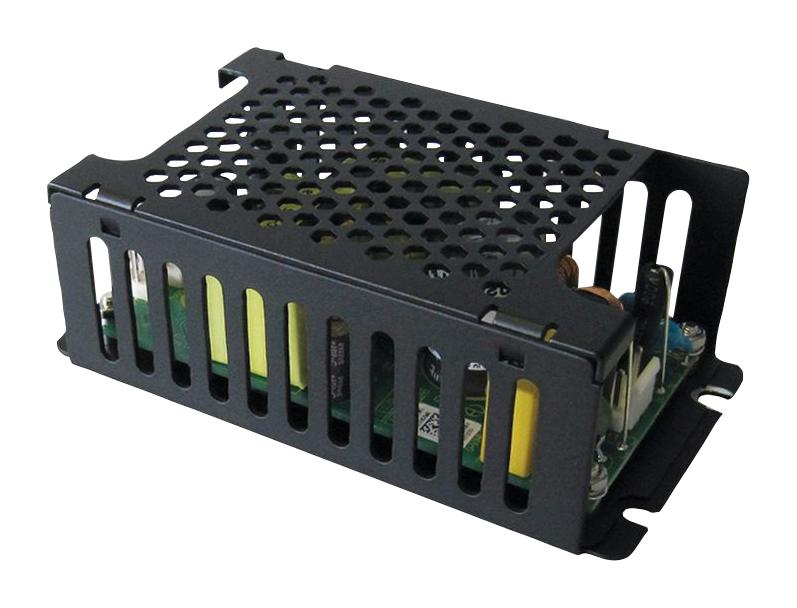

TDK-LAMBDA CUS100ME12A Medical Power Supply Module
This high-performance power supply module delivers 100W of power with convection, conduction, and forced air cooling options, suitable for medical and industrial applications. Featuring a wide input voltage range of 85-264VAC, it offers high efficiency up to 94%, low leakage current under 250uA, and overvoltage, short circuit, and overload protections. The compact design, certified for IEC/EN/UL60950-1 and 60601-1 standards, supports operation in environments up to 85°C and altitudes of 5000 meters, making it ideal for demanding healthcare and industrial systems requiring reliable, safe, and efficient power conversion.
TDK-LAMBDA CUS100ME12A Medical Power Supply Module Specifications:
- Input Voltage Range: 85-264VAC, derates linearly to 90% load at 85VAC
- Output Power: 100W (convection, conduction, forced air cooling options)
- Efficiency: Up to 94%, Active Average >87%
- Leakage Current: <250uA at 230VAC
- Temperature Range: -20°C to +85°C, derating above +50°C
- Protection: Overvoltage, Short circuit (110-190%), Overload (Cycle AC to reset)
- Dimensions: 50.8 x 101.6 x 31.5 mm, various mounting options including U Channel and Baseplate
- Isolation: 1.5kVAC input to ground, 4kVAC input to output, 1.5kVAC output to ground
- Certifications: IEC/EN/UL60950-1, 60601-1 (medical), EN55011/EN55032-B (EMI)
- Operating Altitude: Up to 5000m, Vibration: 2G (non-operating), Shock: 30G
- Weight: approximately 180g to 255g depending on model
Buy the TDK Lambda Series CUS100ME Medical Power Supply: CUS100ME-12A
Enhance your medical or industrial equipment with the reliable and efficient TDK Lambda CUS100ME-12A power supply. With 100W output, wide input voltage, high efficiency up to 94%, and certifications for medical use, this power module ensures safety and excellence in demanding environments. Its compact size and robust protections provide peace of mind, making it ideal for healthcare devices, industrial machinery, and control systems. Purchase online today to ensure seamless integration and optimal performance in your applications.
Buy TDK Lambda CUS100ME-12A power supply now and experience unmatched reliability and performance in healthcare and industrial systems.
Frequently Asked Questions
Where can I buy TDK-LAMBDA CUS100ME12A?
You can click on the BUY or RFQ button to purchase CUS100ME12A from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part CUS100ME12A?
You can download the CUS100ME12A datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of CUS100ME12A?
TDK-LAMBDA
