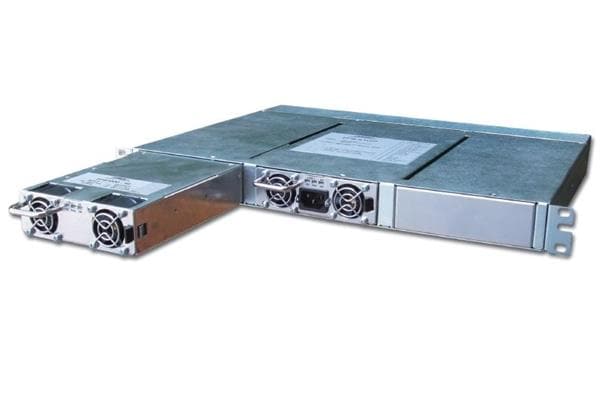

TDK-LAMBDA FPS100012 1000W Front End Power Supply
The TDK-LAMBDA FPS1000 series provides a robust and efficient power solution for industrial applications. These power supplies can be configured in hot-swap redundant setups or used to deliver up to 3000W of power. They are designed for use in 19” 1U high racks, offering flexibility in system design. Features include internal ORing diodes, current sharing for automatic parallel operation, and a 12V auxiliary output. The optional isolated I2C interface enables communication and monitoring capabilities.
TDK-LAMBDA FPS100012 1000W Front End Power Supply Specifications:
- Input Voltage Range: 85 - 265 / 120 - 360 Vac / Vdc
- Input Frequency: 47 - 63 Hz
- Output Voltage: 12 V
- Output Voltage Range: 10.5 - 13.2 V
- Output Current: 72 A
- Maximum Power: 864 W
- Output Noise: 150 mV
- Efficiency: 80 / 83 %
- Over Voltage Protection: 14.3 to 15.7 V
- Operating Temperature: 0 to +50 °C
- Altitude: 3000 m
- Warranty: 2 Years
